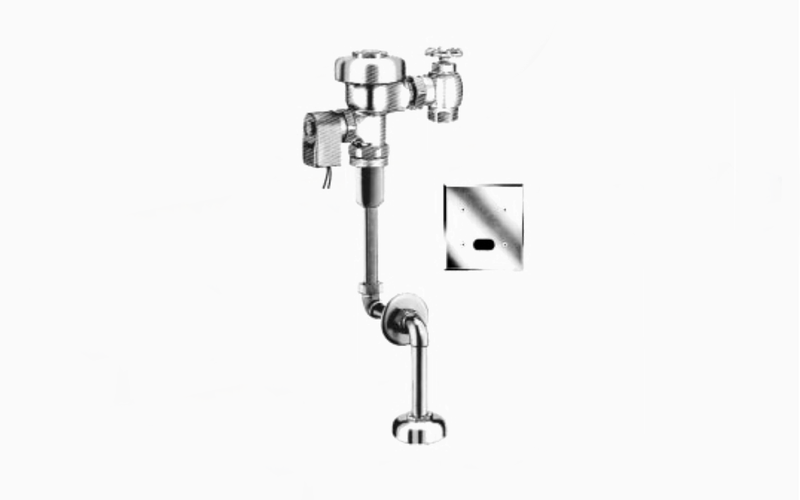

Sloan 197 ESS Concealed Hardwired Sensor Urinal Flushometer (1.0 GPF), Small Wall Box, TMO, 3/4 Option DBP TMO (True Mechanical Override)

The Sloan 197-1 is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.

Sensor-activated urinal flushometer with chloramine-resistant PERMEX® diaphragm. Durable brass construction meets ASTM and ASSE standards. Explore the SLOAN 197 ESS now.

Options on this configuration: Small Wall Box (SWB); True Mechanical Override (TMO); 3/4; DBP. Sloan model number: Sloan 197-1. Sloan's own price-list description: SLOAN 197-1 2-10 3/4 DBP ESS TMO SWB.

Features

• Sensor-activated, hardwired urinal flushometer
• High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• MPN: Sloan 197-1
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Volume per Flush (gal): 1.0
• Power Source: Hardwired AC
• Override Type: True Mechanical Override
