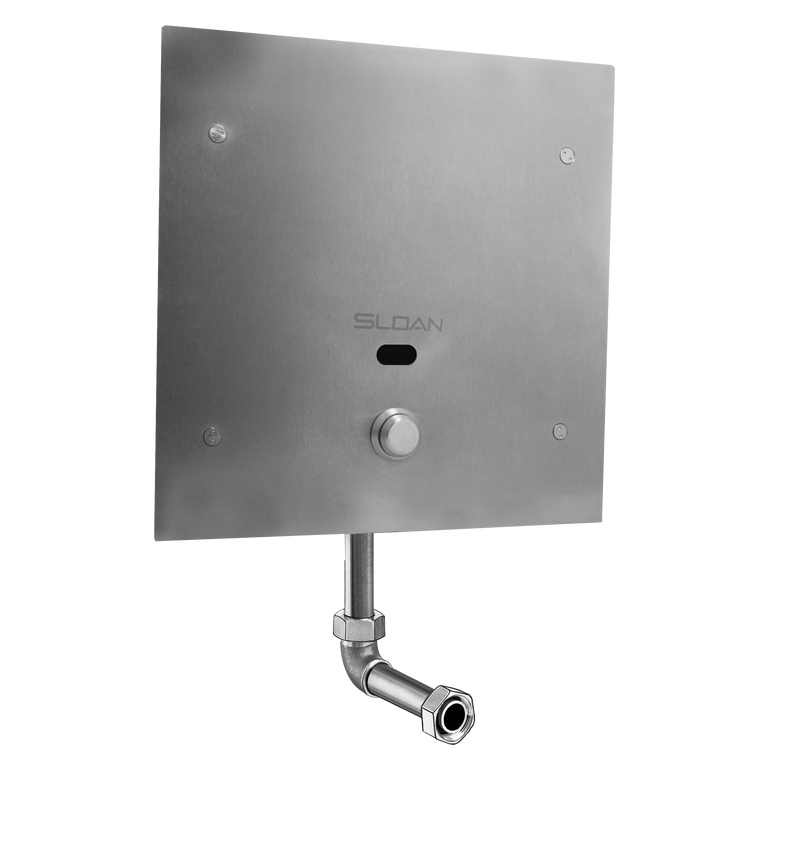

The SLOAN 195 ESS-0.25-BSS-TMO-SWB-HW-24V is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.25 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
SLOAN 195 ESS Flushometer: Low 1.0 gpf flush volume enhances water efficiency. ADA-compliant handle prevents excess flushing. Durable brass construction.
Options on this configuration: Small Wall Box (SWB); 24V Power (24V); Hardwired (HW); True Mechanical Override (TMO); 3/4. Sloan model number: SLOAN 195 ESS-0.25-BSS-TMO-SWB-HW-24V. Sloan's own price-list description: SLOAN 195-0.25 2-10 3/4 ESS TMO SWB.
Features
- 0.25 gpf, Stainless Steel Finish, Fixture Connection Rear Spud, Single Flush, 2"-10.75" L Dimension, True Mechanical Override, Hardwired, Sensor-Operated, 24V, Small Wall Box Included Wall Box
- Flush volumes start as low as 1.0 gpf/3.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Low-consumption flush accuracy also enhances water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a small wall box included wall box.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Sensor
-
MPN: SLOAN 195 ESS-0.25-BSS-TMO-SWB-HW-24V
-
Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, UL, ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Concealed
-
Spud Connection: Rear Spud
-
Rough-In (in): 13.5"
-
L Dimension (in): 2"-10-3/4"
-
Volume per Flush (gal): 0.25
-
Dual Flush: No
-
Finish: Stainless Steel
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: Hardwired AC
-
Power Supply Detail: 24V
-
Override Type: True Mechanical Override
-
Wall Box Type: Small Wall Box Included
-
Sensing Range (in): 15"-30"
