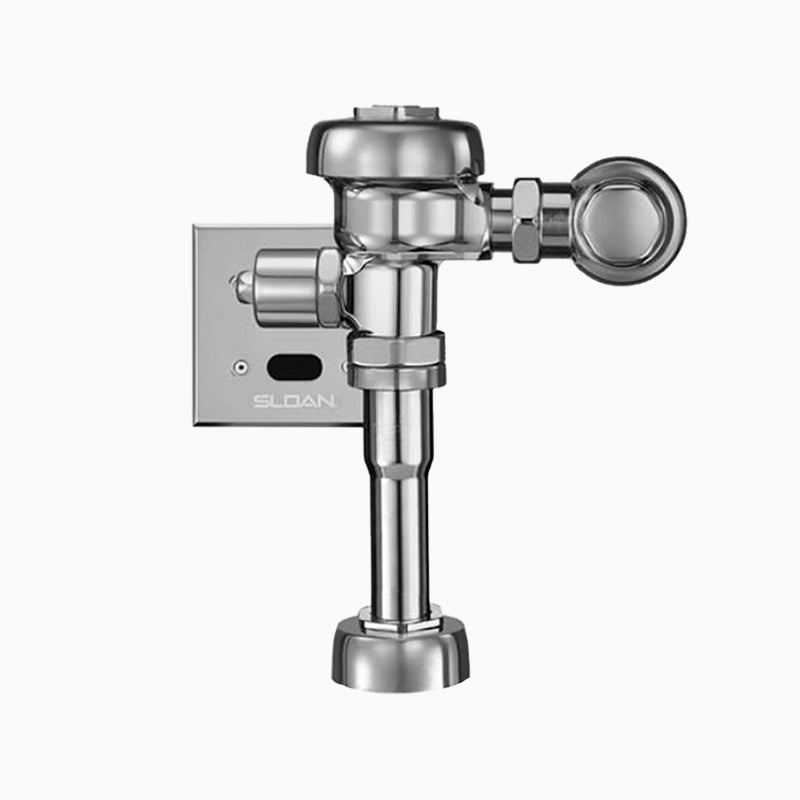

The Sloan 180-1 is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.
Conserve water with flush volumes as low as 1.0 gpf. SLOAN 180 ESS flushometer features CID technology for precise flush control.
Options on this configuration: SINGLE; BOX. Sloan model number: Sloan 180-1. Sloan's own price-list description: SLOAN 180-1 ESS OR (SINGLE BOX).
Features
- Flush volumes start as low as 1.0 gpf/3.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Sensor
-
MPN: Sloan 180-1
-
Certifications: ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Exposed
-
Volume per Flush (gal): 1.0
-
Vandal Resistant: Yes
-
Power Source: Hardwired AC
