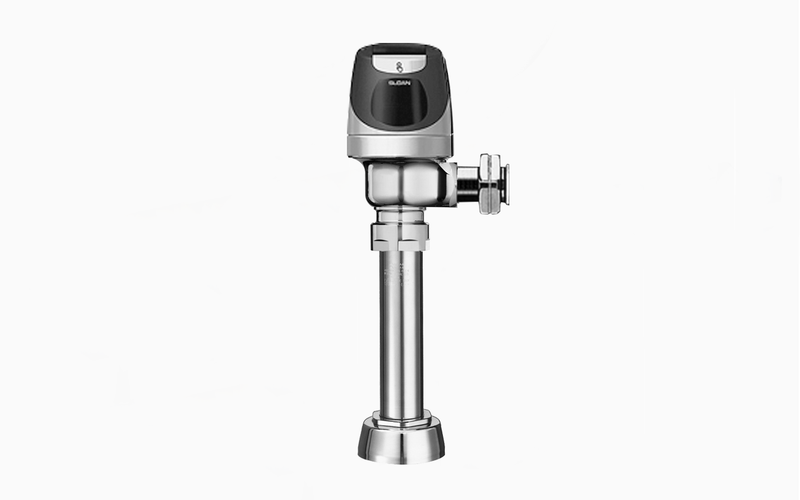

Sloan SOLIS 8112 XDT Exposed Solar-Powered Sensor Water Closet Flushometer (1.6 GPF)

The Sloan SOLIS 8112 XDT-1.6-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

SOLIS 8112 XDT: Exposed sensor water closet for commercial use. ADA compliant, cUPC certified. Polished chrome finish. Streamline your facility's restroom efficiency.

Options on this configuration: Adjustable Ground Joint for Tek Control Stop (XDT). Sloan model number: SOLIS 8112 XDT-1.6-CP.

Features

• 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Solar-powered, with a battery back-up for low-light conditions.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA.

What control stop ships with this valve?

Adjustable Ground Joint for Tek, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• Control Stop: Adjustable Ground Joint for Tek
• MPN: SOLIS 8112 XDT-1.6-CP
• Certifications: ADA, Buy American Act, IAPMO
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Override Type: Electrical Override
