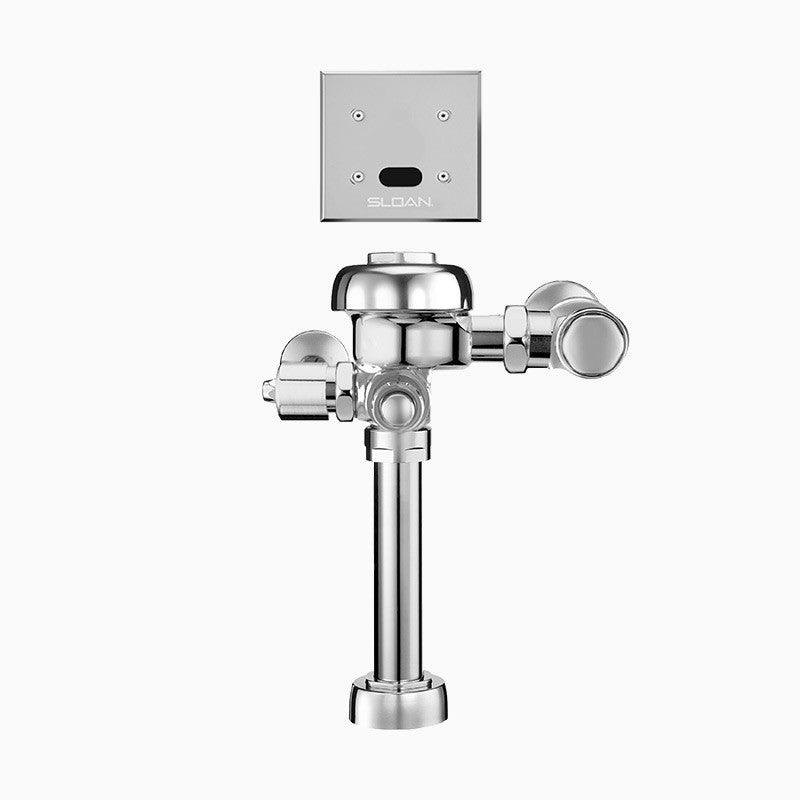

Sloan 111 ESS TMO Exposed Hardwired Sensor Water Closet Flushometer (1.1 GPF) TMO

The SLOAN 111 ESS TMO-1.1-CP-TMO-HW-24V is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.1 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Efficient 1.1 gpf flushometer with non-hold open push button prevents excess flushing. Vandal-resistant design for commercial settings.

Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB); 24V Power (24V); Hardwired (HW); True Mechanical Override (TMO). Sloan model number: SLOAN 111 ESS TMO-1.1-CP-TMO-HW-24V.

Features

• 1.1 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, True Mechanical Override, Hardwired, Sensor-Operated, 24V
• Flush volumes start as low as 1.1 gpf/4.2 Lpf
• Water conservation is aided by a non-hold open push button, which prevents toilet from exceeding intended flush volume
• Adjustable tailpiece to accommodate different height requirements
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Valve shall be in compliance to the applicable sections of ASSE 1037
• High chloramine resistant PERMEX Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.1 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• MPN: SLOAN 111 ESS TMO-1.1-CP-TMO-HW-24V
• Certifications: Buy American Act, BABA, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.1
• Dual Flush: No
• Finish: Polished Chrome
• Vandal Resistant: Yes
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Power Supply Detail: 24V
• Override Type: True Mechanical Override
• Sensing Range (in): 22"-42"
