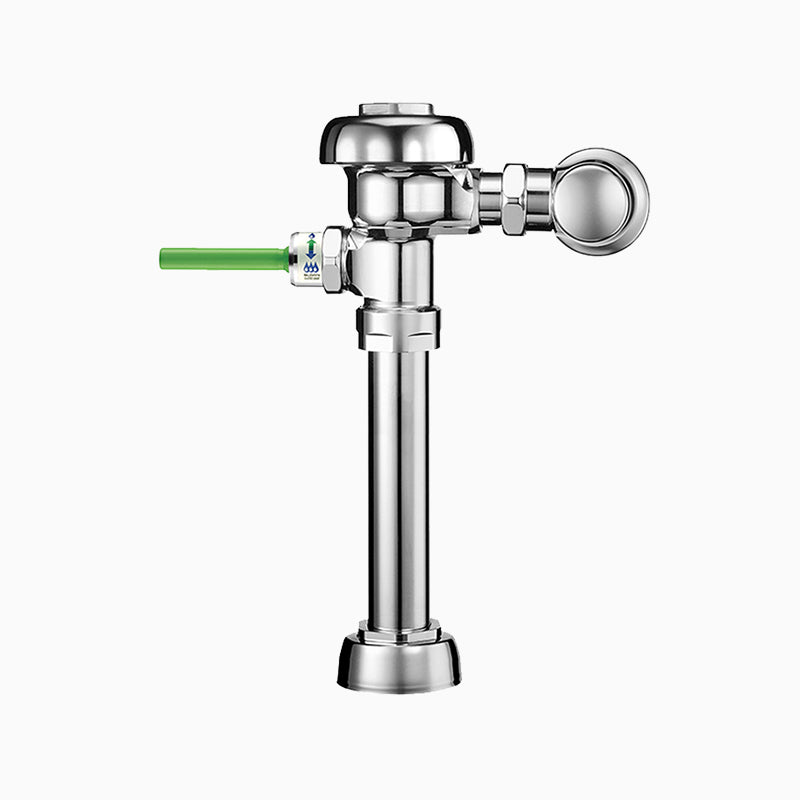

Sloan WES 111-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud, Polished Chrome, Angle Stop Bumper, Dual-Filtered Fixed Bypass Diaphragm

Roll over image to zoom in

Sloan WES 111-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud, Polished Chrome, Angle Stop Bumper, Dual-Filtered Fixed Bypass Diaphragm

Name: Sloan WES 111-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud, Polished Chrome, Angle Stop Bumper, Dual-Filtered Fixed Bypass Diaphragm
Brand: Sloan
SKU: 3760006
Price: 225.08 USD
Availability: InStock

Save $106.62

SloanSKU: 3760006

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The SLOAN WES 111-1.6-YO-CP is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan WES 111 exposed manual flushometer with PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance for commercial water closets.

Options on this configuration: Angle Stop Bumper (YO); Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SLOAN WES 111-1.6-YO-CP.

Features

1.6 gpf, Angle Stop Bumper, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
Is this exposed or concealed, and does it need a wall box?: Exposed -- the working parts are visible on the wall surface.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

Type: Flushometer
Inlet Size: 1"
Outlet Size: 1-1/2"
Body Material: Semi-Red Brass
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
Operation: Manual
Country of Origin: USA
MPN: SLOAN WES 111-1.6-YO-CP
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
Fixture Served: Water Closet
Body Style: Exposed
Spud Connection: Top Spud
Rough-In (in): 11.5"
Volume per Flush (gal): 1.6
Dual Flush: No
Finish: Polished Chrome
Min Operating Pressure (PSI): 15
Max Operating Pressure (PSI): 80
