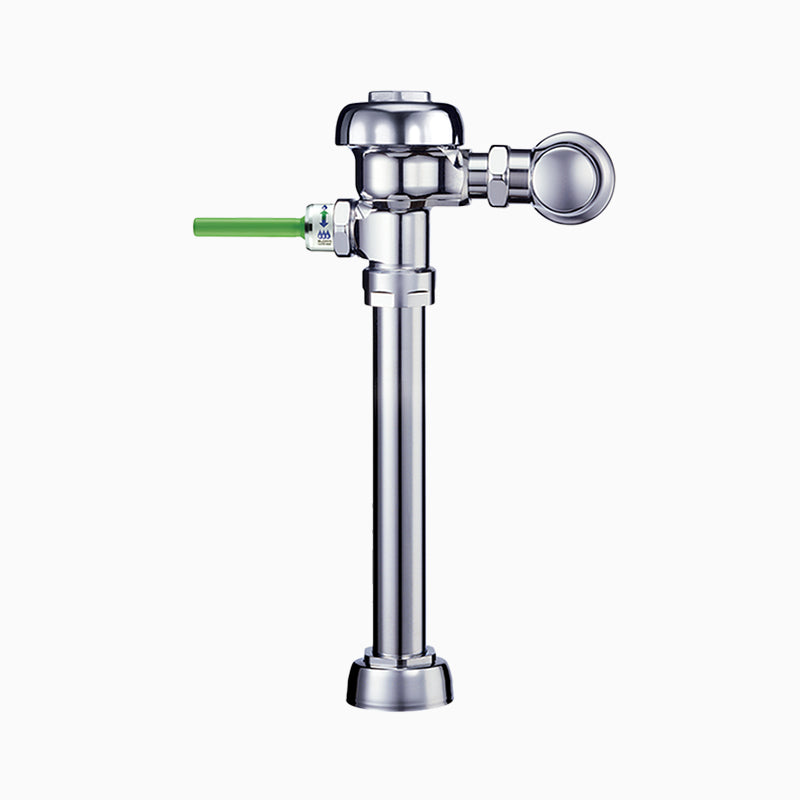

Sloan WES 115 Exposed Manual Flushometer, Top Spud, Polished Chrome, SKU 3760003

The SLOAN WES 115-1.6/1.1-CP is a manual diaphragm-type flush valve for a water closet. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan WES 115 exposed manual water closet flushometer with PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance. ADA compliant.

Options on this configuration: 1.6/1.1 gpf. Sloan model number: SLOAN WES 115-1.6/1.1-CP. Sloan's own price-list description: SLOAN WES 115.

Features

• 1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• Country of Origin: USA
• MPN: SLOAN WES 115-1.6/1.1-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 24"
• Dual Flush: Yes
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
