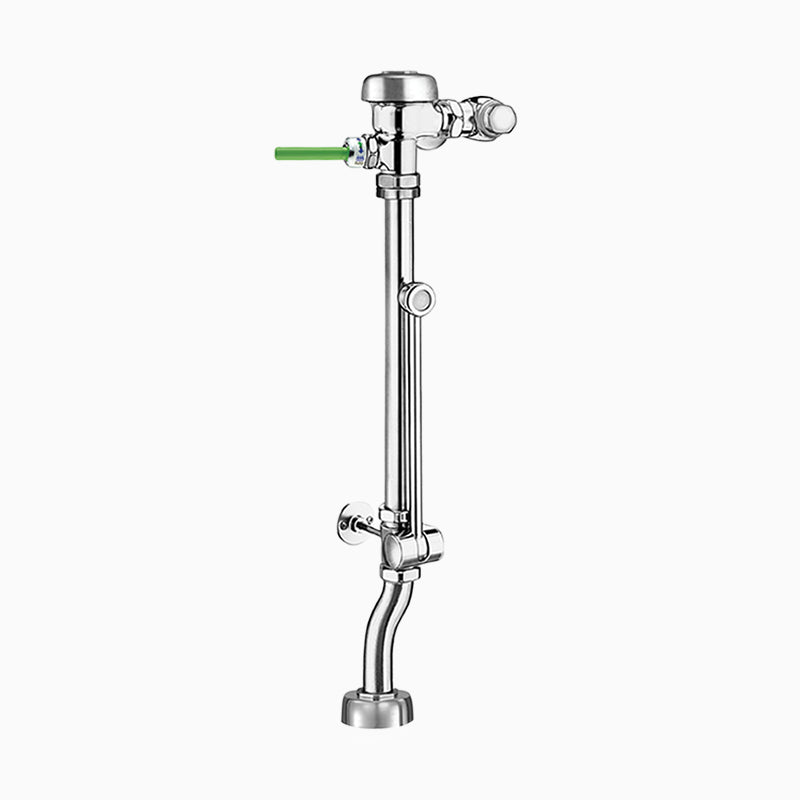

Sloan WES BPW 1150 Exposed Manual Flushometer, Top Spud, Polished Chrome, Saniguard Handle, Dual-Filtered Fixed Bypass Diaphragm, 1150

Roll over image to zoom in

Sloan WES BPW 1150 Exposed Manual Flushometer, Top Spud, Polished Chrome, Saniguard Handle, Dual-Filtered Fixed Bypass Diaphragm, 1150

Name: Sloan WES BPW 1150 Exposed Manual Flushometer, Top Spud, Polished Chrome, Saniguard Handle, Dual-Filtered Fixed Bypass Diaphragm, 1150
Brand: Sloan
SKU: 3729705
Price: 777.88 USD
Availability: InStock

Save $368.47

SloanSKU: 3729705

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The SLOAN WES BPW 1150-1.6/1.1-CP-SG is a manual diaphragm-type flush valve for a water closet. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan WES BPW 1150 exposed bedpan washer flushometer with PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance. ADA and BAA compliant.

Options on this configuration: Saniguard Handle (SG); Dual-Filtered Fixed Bypass Diaphragm (DFB); 1.6/1.1 gpf; 1150. Sloan model number: SLOAN WES BPW 1150-1.6/1.1-CP-SG. Sloan's own price-list description: SLOAN WES BPW 1150 DFB SG.

Features

1.6/1.1 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Saniguard® Handle
High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet, a top spud connection.
Is this exposed or concealed, and does it need a wall box?: Exposed -- the working parts are visible on the wall surface.
What kind of handle does this have?: A Saniguard handle, per Sloan's own spec for this model.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

Type: Flushometer
Inlet Size: 1"
Outlet Size: 1-1/2"
Body Material: Semi-Red Brass
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
Operation: Manual
MPN: SLOAN WES BPW 1150-1.6/1.1-CP-SG
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
Fixture Served: Water Closet
Body Style: Exposed
Spud Connection: Top Spud
Rough-In (in): 26.5"
Dual Flush: No
Finish: Polished Chrome
Handle Style: Saniguard
Min Operating Pressure (PSI): 15
Max Operating Pressure (PSI): 80
