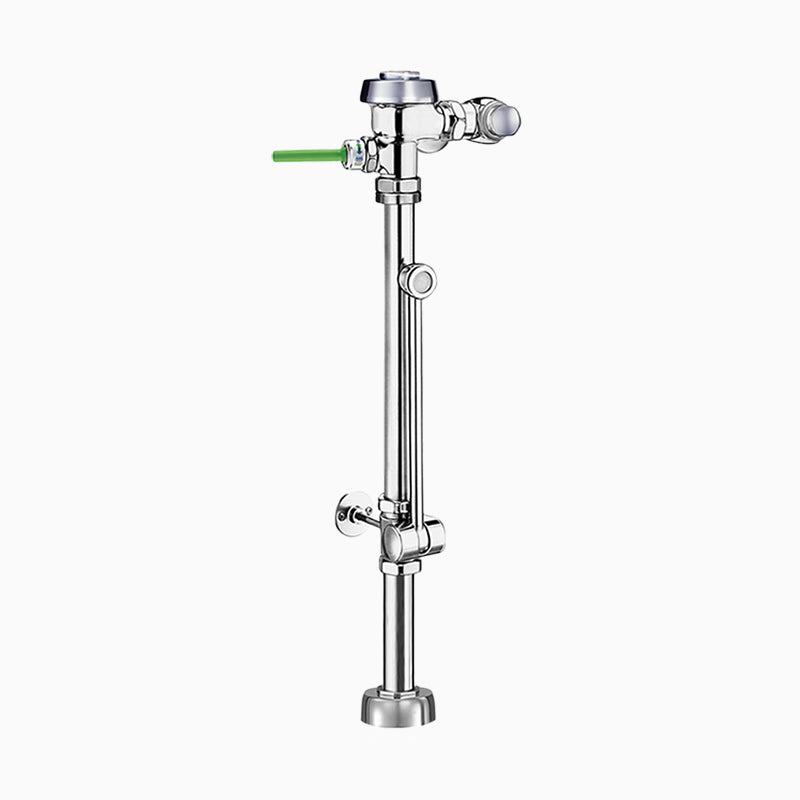

Sloan WES BPW 1100 Exposed Manual Flushometer, Top Spud, Polished Chrome, 1.6 gpf

The Sloan WES BPW 1100-1.6/1.1-CP is a manual diaphragm-type flush valve for a water closet. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan WES BPW 1100 exposed manual bedpan washer flushometer with dual filtered bypass PERMEX diaphragm, semi-red brass construction.

Options on this configuration: 1.6/1.1 gpf. Sloan model number: WES BPW 1100-1.6/1.1-CP. Sloan's own price-list description: WES BPW 1100-1.6.

Features

• 1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: WES BPW 1100-1.6/1.1-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 26.5"
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
