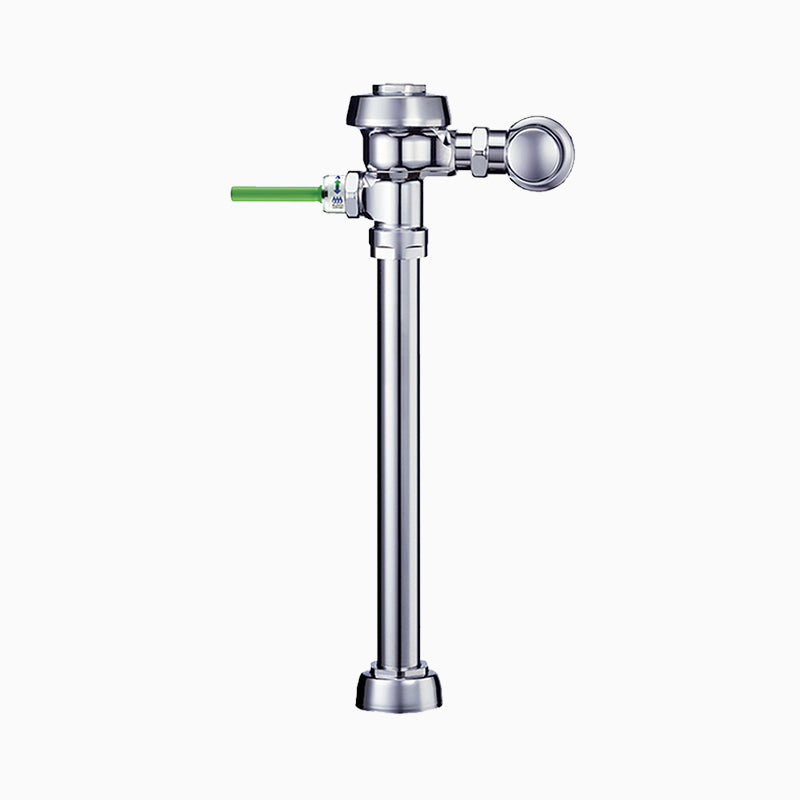

The Sloan WES 115-1.6/1.1-CP-WWT is a manual diaphragm-type flush valve for a water closet. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
WES 115 Dual-flush 1.1 and 1.6 gpf flushometer, antimicrobial handle coating, PERMEX diaphragm, and ASSE 1037 compliance for commercial water closets.
Options on this configuration: Whitworth Thread (WWT); 1.6/1.1 gpf; W/WWT; STOP. Sloan model number: WES 115-1.6/1.1-CP-WWT. Sloan's own price-list description: WES 115 W/WWT STOP.
Features
- 1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Whitworth Thread
- Lift handle to initiate reduced, 1.1 gpf flush to eliminate liquid and paper waste, saving one-half gallon of water
- Push handle down for a regular 1.6 gpf flush to remove solid waste and paper
- Antimicrobial coating on handle lasts for the life of the product
- Green handle signifies UPPERCUT’s water-saving features
- Comes with two metal wall plates that provide operational instructions
- Includes all the reliable, long-lasting features of the Royal® Flushometer
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
Country of Origin: USA
-
MPN: WES 115-1.6/1.1-CP-WWT
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 24"
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
