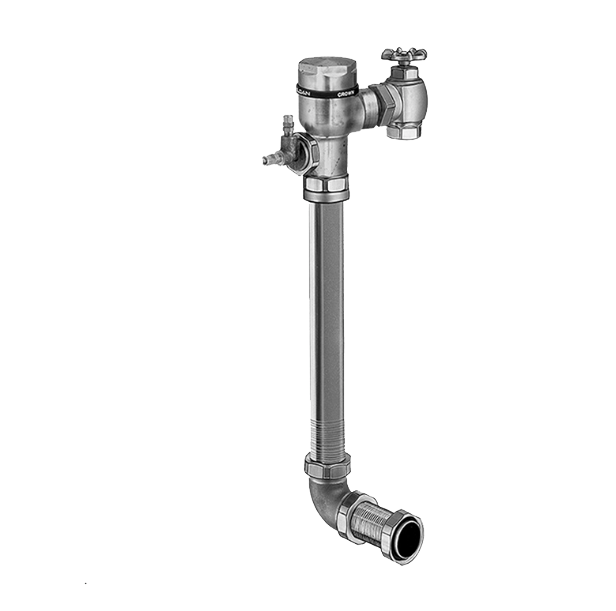

Sloan Crown 952-1.28 Concealed Manual Flushometer, 1.28 gpf, Metal Button Panel Mount Handle

The Sloan Crown 952-1.28 is a manual piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a concealed body.

Sloan CROWN 952 concealed manual water closet flushometer. Semi-Red Brass body and ASSE 1037 compliant. ADA and EPA WaterSense listed.

Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Metal Button Panel Mount Handle (MBPM); NOR. Sloan model number: Crown 952-1.28. Sloan's own price-list description: CROWN 952-1.28 2-10 3/4 LDIM MBPM NOR.

Features

• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Metal Button Panel Mount handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Crown 952-1.28
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 1.28
• Handle Style: Metal Button Panel Mount
