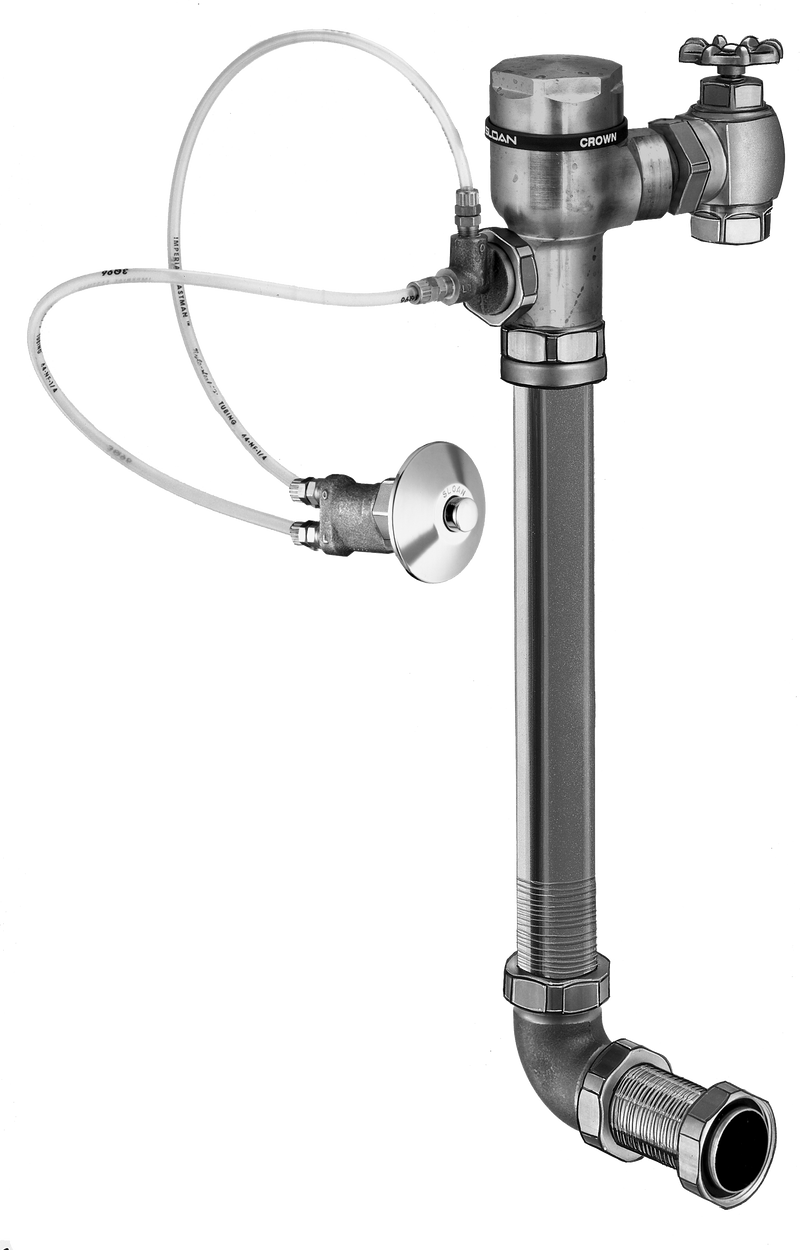

Sloan Crown 952-2.4 Concealed Manual Flushometer, 2.4 gpf, Rear Spud, Unfinished (Rough Brass)

The Sloan CROWN 952-2.4-RB-MBFW is a manual piston-type flush valve for a water closet. It delivers 2.4 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.

Sloan CROWN 952 concealed manual water closet flushometer. Semi-Red Brass body and ASSE 1037 compliant. ADA and EPA WaterSense listed.

Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Metal Button Fixture Wall Actuator (MBFW). Sloan model number: CROWN 952-2.4-RB-MBFW.

Features

• 2.4 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2"-10.75" L Dimension, Metal Button Fixture Wall Actuator Push Button
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 2.4 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Metal Button Fixture Wall Actuator handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Manual
• MPN: CROWN 952-2.4-RB-MBFW
• Certifications: ADA, Buy American Act, BABA, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Spud Connection: Rear Spud
• Rough-In (in): 14.5"
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 2.4
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Handle Style: Metal Button Fixture Wall Actuator
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
