Similar products
Specifications
Description

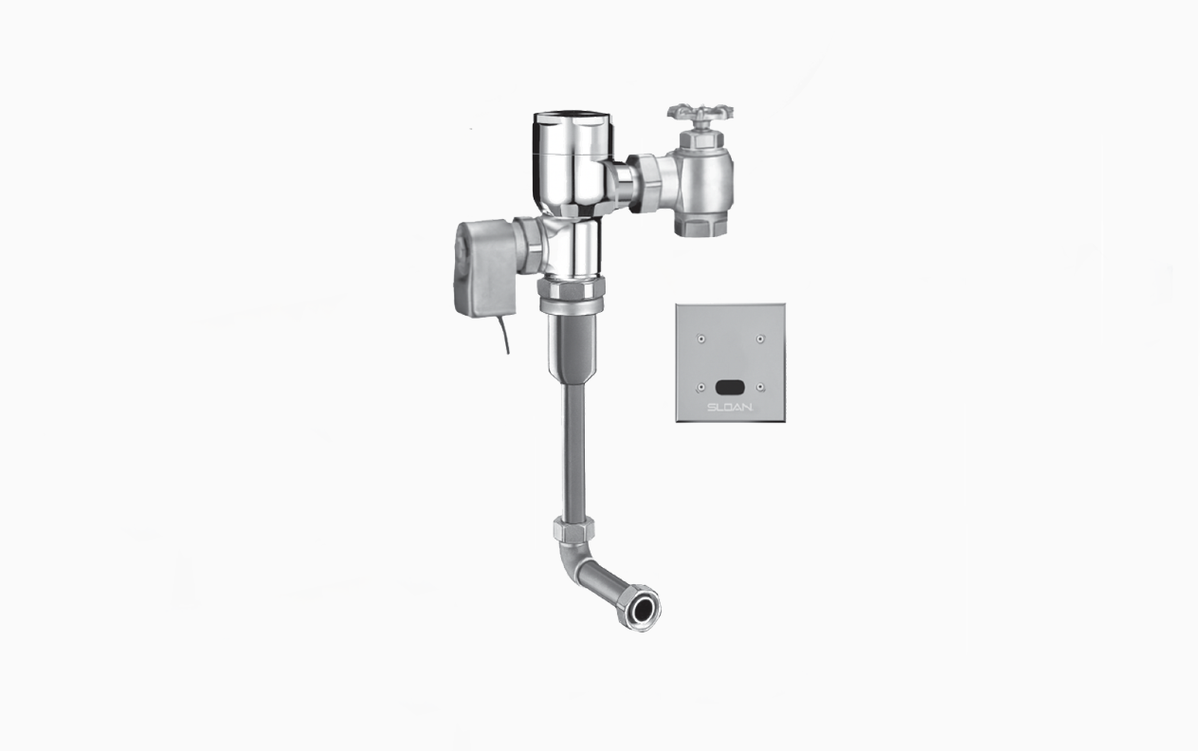

The Sloan Crown 195-0.25 is a sensor-operated piston-type flush valve for a urinal. It delivers 0.25 gallons per flush, with a concealed body.
CROWN 195 ESS: Concealed sensor urinal flushometer compliant with ASTM and ASSE standards. Engineered for commercial installations. Explore specifications and order now.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM). Sloan model number: Crown 195-0.25.
Features
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Sensor
- MPN: Crown 195-0.25
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- L Dimension (in): 2"-10-3/4"
- Volume per Flush (gal): 0.25
- Power Source: Hardwired AC
Details
| Series | CROWN 195 ESS | Device Type | Flushometer |
| Operation | Sensor | Options | 2"-10-3/4" L Dimension (LDIM) |
| Fixture Served | Urinal | Body style | Concealed |
| Cycle volume gal | 0.25 gal | L dimension in | 2"-10-3/4" |
| Power source | Hardwired AC | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
|
| Series | CROWN 195 ESS
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
