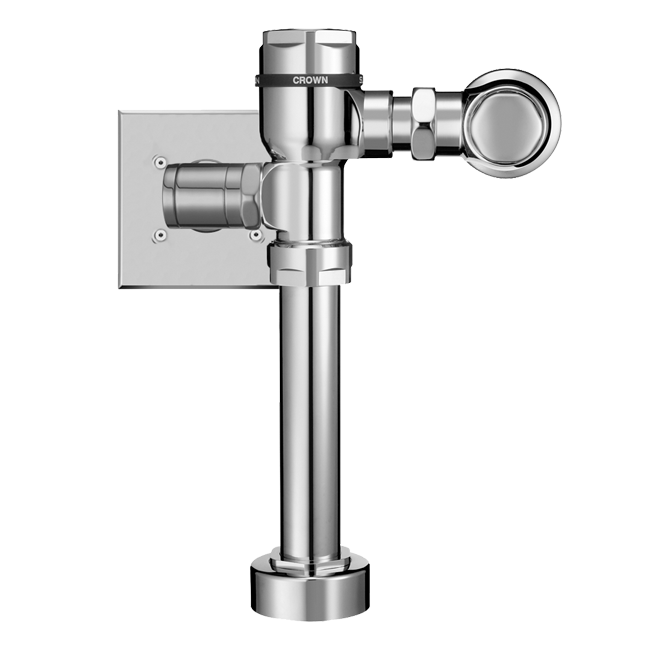

Sloan Crown 111 ES-1.28 Exposed Solenoid Flushometer, 1.28 gpf, Top Spud, Polished Chrome

The Sloan CROWN 111 ES-1.28-CP-HW-24V is a solenoid-operated piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Options on this configuration: 24V Power (24V); Hardwired (HW). Sloan model number: CROWN 111 ES-1.28-CP-HW-24V.

Features

• 1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1" Control Stop, Hardwired, Solenoid-Operated, 24V
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Solenoid
• MPN: CROWN 111 ES-1.28-CP-HW-24V
• Certifications: ADA, Buy American Act, IAPMO, WaterSense, UL, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Power Source: Hardwired AC
• Power Supply Detail: 24V
