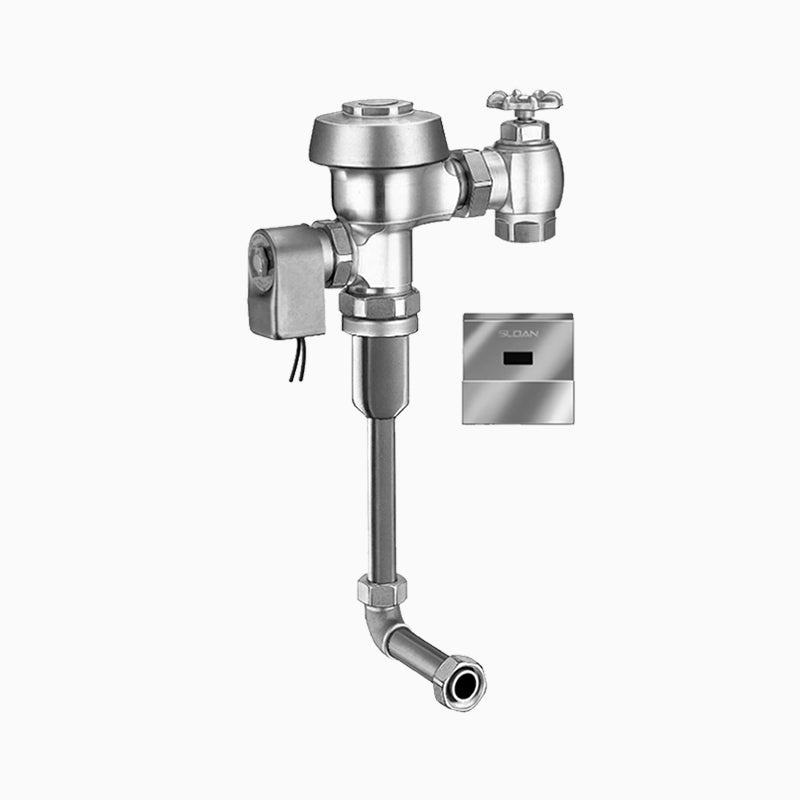

The Sloan Royal 195-0.125 is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.
Flush volumes starting at one pint. Royal 195 ESS flushometer conserves water with CID technology and ADA-compliant handle. Durable brass construction.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM). Sloan model number: Royal 195-0.125.
Features
- Flush volumes start as low as a pint of water
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Sensor
- MPN: Royal 195-0.125
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- L Dimension (in): 2"-10-3/4"
- Volume per Flush (gal): 0.125
- Finish: Brushed Stainless
- Power Source: Hardwired AC
Details
| Series | ROYAL 195 ESS | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Sensor |
| Options | 2"-10-3/4" L Dimension (LDIM) | Fixture Served | Urinal |
| Body style | Concealed | Coating | Brushed Stainless |
| Cycle volume gal | 0.125 gal | L dimension in | 2"-10-3/4" |
| Power source | Hardwired AC | — | — |
Certifications & Standards
| ASSE-1037 | — |
