Description

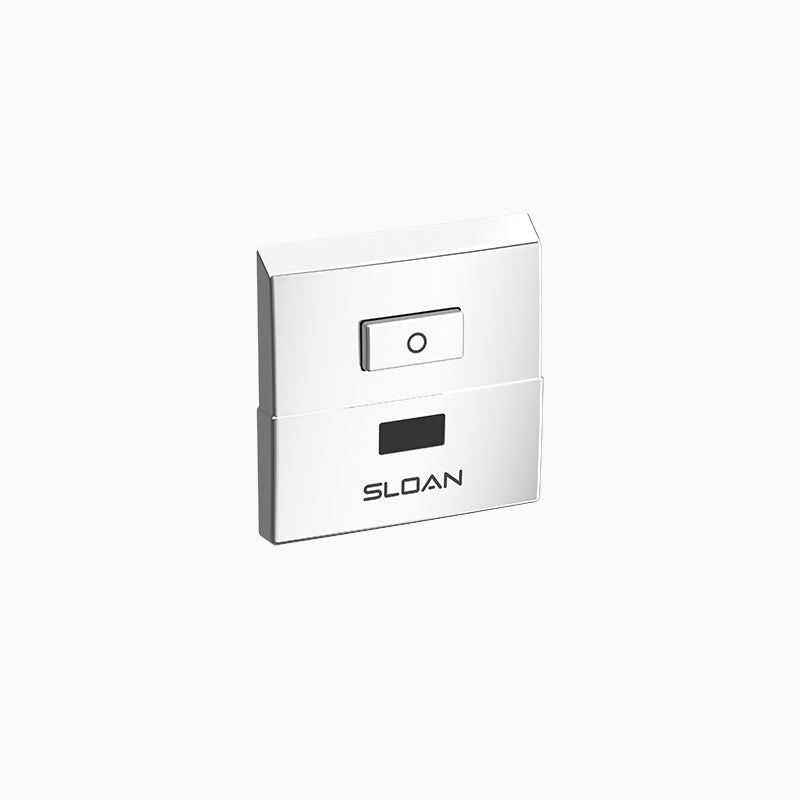

The Sloan ROYAL 195 ESS TMO SBX-0.125-RB-TMO-24V is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a concealed body. It features a semi-red brass body.
Precise urinal flushing with Royal® Concealed Sensor Hardwired Flushometer. ADA compliant, water-efficient design for commercial facilities.
Options on this configuration: 24V Power (24V); True Mechanical Override (TMO); SBX. Sloan model number: ROYAL 195 ESS TMO SBX-0.125-RB-TMO-24V. Sloan's own price-list description: ROYAL 195-0.125 ESS TMO SBX.
Features
- 0.125 gpf, Dual-Filtered Bypass, Rough Brass Finish, 0.75" Flush Connection, Single Flush, 0.75" Inlet, 3/4" Control Stop, 2"-10.75" L Dimension, True Mechanical Override, Hardwired, Infrared, 10.5" Vacuum Breaker, 24V
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and WaterSense.
Specifications
- Type: Flushometer
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: ROYAL 195 ESS TMO SBX-0.125-RB-TMO-24V
- Certifications: ADA, ASSE-1001, Buy American Act, IAPMO, WaterSense, UL
- Fixture Served: Urinal
- Body Style: Concealed
- L Dimension (in): 2"-10-3/4"
- Volume per Flush (gal): 0.125
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Backflow Device: Vacuum Breaker
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Hardwired AC
- Power Supply Detail: 24V
- Sensor Type: Infrared
- Override Type: True Mechanical Override
- Sensing Range (in): 15"-30"
Details
| Series | ROYAL 195 ESS TMO SBX | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | 24V Power (24V), True Mechanical Override (TMO), SBX | Fixture Served | Urinal |
| Backflow device | Vacuum Breaker | Body style | Concealed |
| Coating | Unfinished (Rough Brass) | Cycle volume gal | 0.125 gal |
| Dual flush | No | L dimension in | 2"-10-3/4" |
| Operating pressure min psi | 15 PSI | Override type | True Mechanical Override |
| Power source | Hardwired AC | Power supply detail | 24V |
| Sensing range in | 15"-30" | Sensor type | Infrared |
Certifications & Standards
| ADA | ASSE-1001 |
| Buy American Act | IAPMO |
| WaterSense | UL |
Compare with similar products
| Fixture Served | Urinal
| Urinal
|
| Series | ROYAL 195 ESS TMO SBX
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Sensor
| Sensor
|
| Certifications | ADA, ASSE-1001, Buy American Act, IAPMO, WaterSense, UL
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
