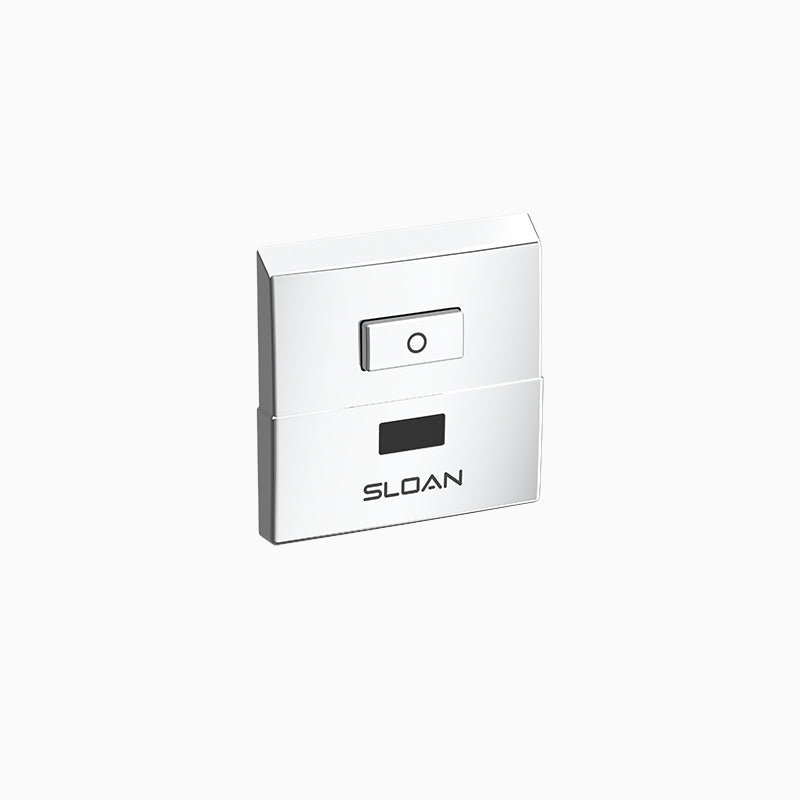

Sloan Royal 195 ESS TMO SBX Concealed Hardwired Sensor Urinal Flushometer (0.25 GPF) TMO

The Sloan ROYAL 195 ESS TMO SBX-0.25-RB-TMO-24V is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.25 gallons per flush, with a concealed body. It features a semi-red brass body.

Precise urinal flushing with Royal® Concealed Sensor Hardwired Flushometer. ADA compliant, water-efficient design for commercial facilities.

Options on this configuration: 24V Power (24V); True Mechanical Override (TMO); SBX. Sloan model number: ROYAL 195 ESS TMO SBX-0.25-RB-TMO-24V. Sloan's own price-list description: ROYAL 195-0.25 ESS TMO SBX.

Features

• 0.25 gpf, Dual-Filtered Bypass, Rough Brass Finish, 0.75" Flush Connection, Single Flush, 0.75" Inlet, 3/4" Control Stop, 2"-10.75" L Dimension, True Mechanical Override, Hardwired, Infrared, 10.5" Vacuum Breaker, 24V

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and WaterSense.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: ROYAL 195 ESS TMO SBX-0.25-RB-TMO-24V
• Certifications: ADA, ASSE-1001, Buy American Act, IAPMO, WaterSense, UL
• Fixture Served: Urinal
• Body Style: Concealed
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 0.25
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Power Supply Detail: 24V
• Sensor Type: Infrared
• Override Type: True Mechanical Override
• Sensing Range (in): 15"-30"
