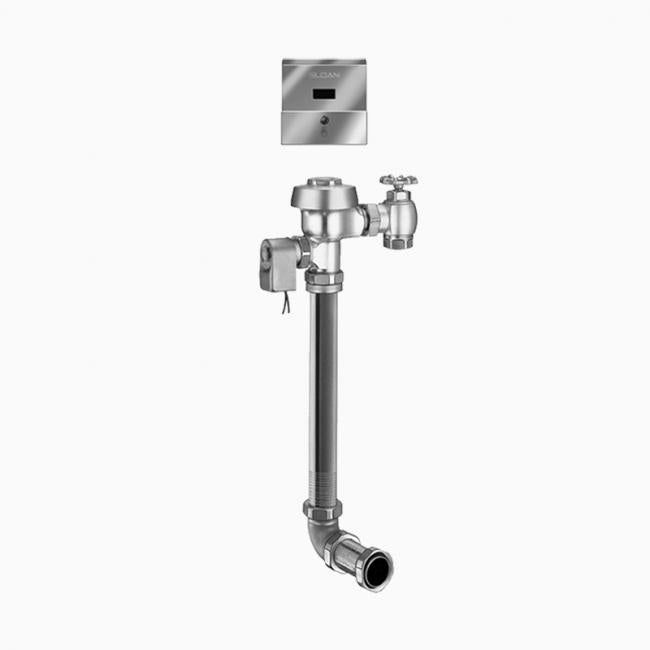

The Sloan ROYAL 152 ESS-2.4-CP-HW-WWT-24V is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 2.4 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Flush volumes from 1.28 gpf with CID technology for precise water efficiency. ADA-compliant handle prevents excess flushing. Vandal-resistant design for commercial durability.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Whitworth Thread (WWT); 24V Power (24V); Hardwired (HW). Sloan model number: ROYAL 152 ESS-2.4-CP-HW-WWT-24V.
Features
- 2.4 gpf, Polished Chrome Finish, Fixture Connection Rear Spud, Single Flush, 2"-10.75" L Dimension, Electrical Override, Hardwired, Sensor-Operated, Whitworth Thread, 24V
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 2.4 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: ROYAL 152 ESS-2.4-CP-HW-WWT-24V
-
Certifications: ADA, Buy American Act, UL, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
Spud Connection: Rear Spud
-
Rough-In (in): 14.5"
-
L Dimension (in): 2"-10-3/4"
-
Volume per Flush (gal): 2.4
-
Dual Flush: No
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: Hardwired AC
-
Power Supply Detail: 24V
-
Override Type: Electrical Override
-
Sensing Range (in): 22"-42"
