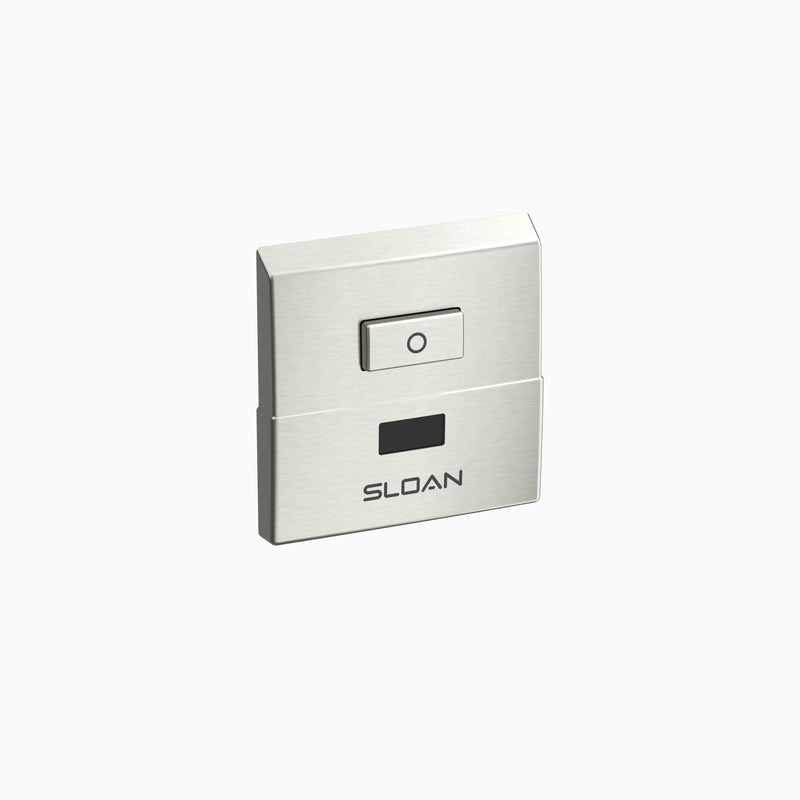

The Sloan ROYAL 152 ESS TMO SBX-1.1-BN-TMO-HW-24V is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.1 gallons per flush, with a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat. This model is certified lead-free for potable-water installations.
Efficient 1.28 gpf flushometer with CID technology for precise flush control. ADA-compliant handle prevents excess water use. Built for commercial durability.
Options on this configuration: 24V Power (24V); Hardwired (HW); True Mechanical Override (TMO); SBX. Sloan model number: ROYAL 152 ESS TMO SBX-1.1-BN-TMO-HW-24V. Sloan's own price-list description: ROYAL 152-1.1 ESS TMO SBX PVDBN.
Features
- 1.1 gpf, Dual-Filtered Bypass, Brushed Nickel Finish, 1.5" Flush Connection, Single Flush, 1" Inlet, 1" Control Stop, 2"-10.75" L Dimension, True Mechanical Override, Hardwired, Infrared, 11.5" Vacuum Breaker, 24V
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.1 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: ROYAL 152 ESS TMO SBX-1.1-BN-TMO-HW-24V
-
Certifications: ADA, ASSE-1001, Buy American Act, BABA, IAPMO, NSF-372, UL, ASSE-1037
-
Lead-Free: Yes
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
L Dimension (in): 2"-10-3/4"
-
Volume per Flush (gal): 1.1
-
Dual Flush: No
-
Finish: Brushed Nickel
-
Vandal Resistant: Yes
-
Backflow Device: Vacuum Breaker
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: Hardwired AC
-
Power Supply Detail: 24V
-
Sensor Type: Infrared
-
Override Type: True Mechanical Override
-
Sensing Range (in): 22"-42"
