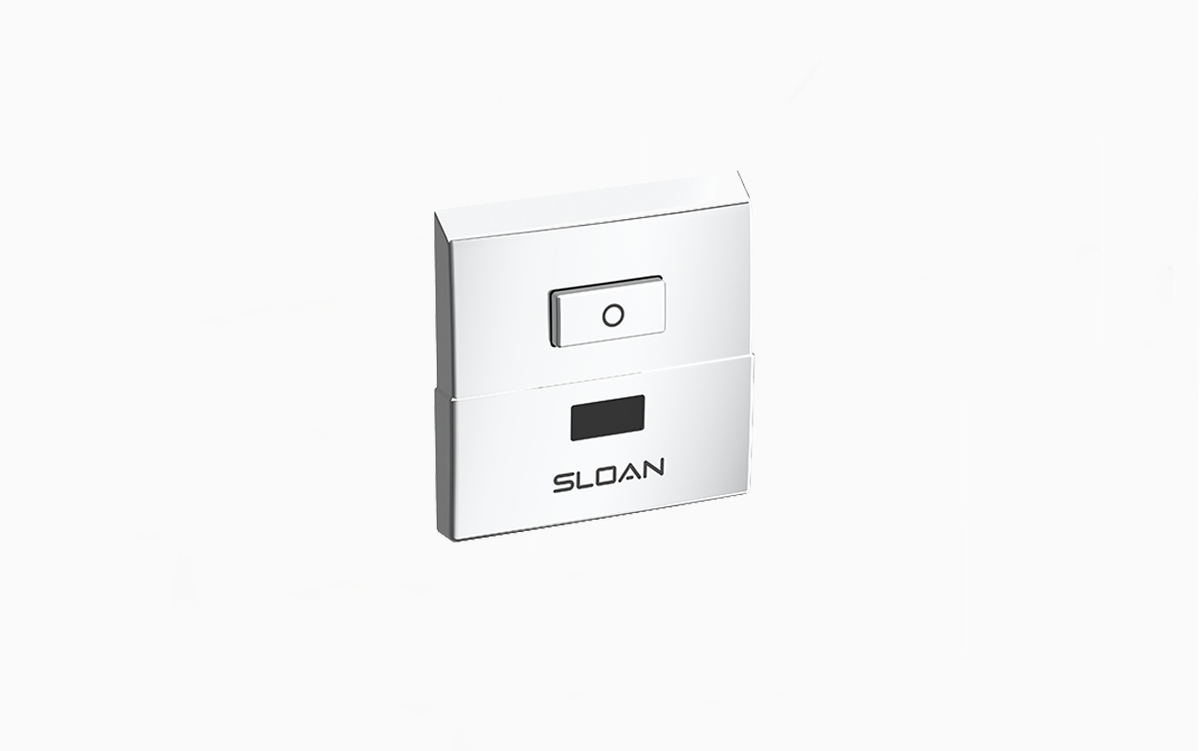

Sloan Royal 152 ESS TMO SBX Concealed Hardwired Sensor Water Closet Flushometer (1.1 GPF) TMO, Polished Chrome

The Sloan ROYAL 152 ESS TMO SBX-1.1-CP-TMO-24V is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.1 gallons per flush, with a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Efficient 1.28 gpf flushometer with CID technology for precise flush control. ADA-compliant handle prevents excess water use. Built for commercial durability.

Options on this configuration: 24V Power (24V); True Mechanical Override (TMO); SBX. Sloan model number: ROYAL 152 ESS TMO SBX-1.1-CP-TMO-24V. Sloan's own price-list description: ROYAL 152-1.1 ESS TMO SBX.

Features

• 1.1 gpf, Dual-Filtered Bypass, Polished Chrome Finish, 1.5" Flush Connection, Single Flush, 1" Inlet, 1" Control Stop, 2"-10.75" L Dimension, True Mechanical Override, Hardwired, Infrared, 11.5" Vacuum Breaker, 24V
• Flush volumes start as low as 1.28 gpf/4.8 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.1 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: ROYAL 152 ESS TMO SBX-1.1-CP-TMO-24V
• Certifications: ASSE-1001, Buy American Act, BABA, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 1.1
• Dual Flush: No
• Finish: Polished Chrome
• Vandal Resistant: Yes
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Power Supply Detail: 24V
• Sensor Type: Infrared
• Override Type: True Mechanical Override
• Sensing Range (in): 22"-42"
