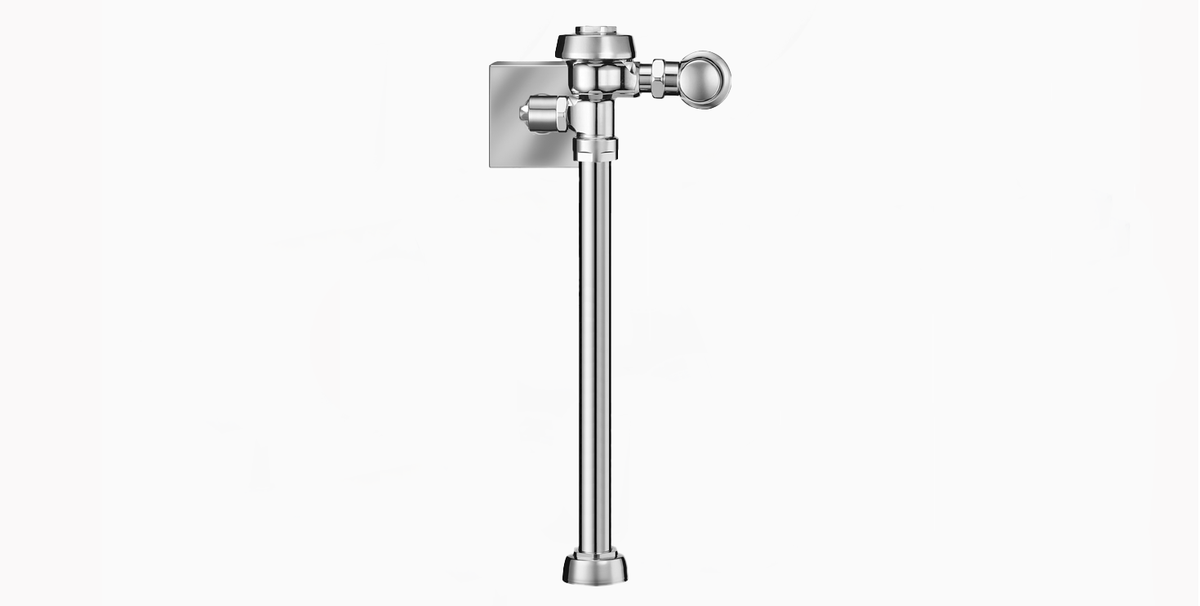

The Sloan Royal 117 is a solenoid-operated diaphragm-type flush valve for a service sink. It features a permex synthetic rubber diaphragm seat.
Standard flush volume is 6.5 gpf. Features CID technology for accuracy and water conservation. Vandal-resistant design for commercial durability.
Options on this configuration: 120V Power (120V). Sloan model number: Royal 117.
Features
- Standard flush volume is 6.5 gpf /24.6 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Solenoid
- MPN: Royal 117
- Certifications: ASSE-1037
- Fixture Served: Service Sink
- Body Style: Exposed
- Vandal Resistant: Yes
- Power Source: Hardwired AC
- Power Supply Detail: 120V
Details
| Series | ROYAL 117 ES | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Solenoid |
| Options | 120V Power (120V) | Fixture Served | Service Sink |
| Body style | Exposed | Vandal resistant | Yes |
| Power source | Hardwired AC | Power supply detail | 120V |
Certifications & Standards
| ASSE-1037 | — |
