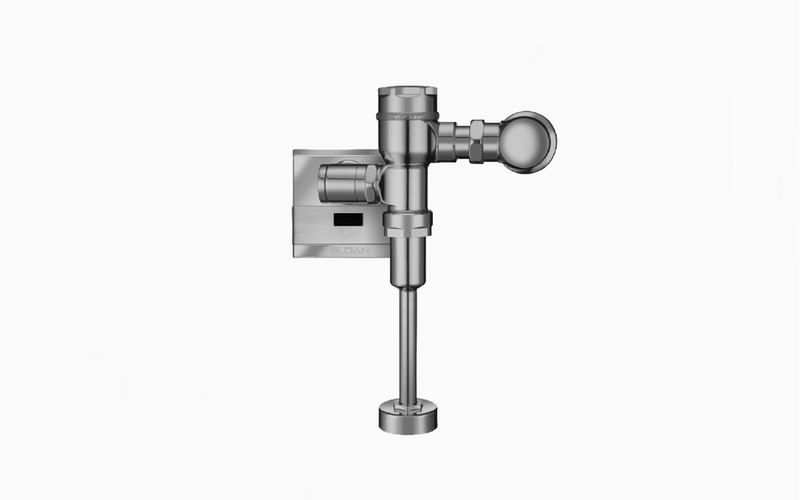

Sloan Crown II 186 ESS Exposed Hardwired Sensor Urinal Flushometer (1.0 GPF), Option LAS Vegas Polished Brass

The Sloan Crown II 186-1 is a sensor-operated piston-type flush valve for a urinal. It delivers 1.0 gallons per flush, with an exposed body.

Introducing the Crown® Exposed Sensor Hardwired Urinal Flushometer, featuring the innovative CROWN II 186 ESS. This cutting-edge flushometer is designed to deliver superior performance and reliability in commercial restroom environments. Crafted with precision, the valve body, cover, tailpiece, and control stop are manufactured in compliance with ASTM Alloy Classification for Semi-Red Brass, ensuring durability and longevity. The Crown II 186 ESS adheres to the applicable sections of ASSE 1037, guaranteeing optimal functionality and safety standards. This state-of-the-art flushometer combines advanced sensor technology with robust construction, providing a hygienic, hands-free flushing experience that conserves water and promotes sustainability. Available in polished chrome and polished brass finishes, the Crown® Exposed Sensor Hardwired Urinal Flushometer seamlessly integrates into any modern restroom design while offering the reliability and efficiency that facility managers and users demand.

Options on this configuration: LAS; VEGAS. Sloan model number: Crown II 186-1. Sloan's own price-list description: CROWN II 186-1 ESS PVDPB LAS VEGAS.

Features

• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Sensor
• MPN: Crown II 186-1
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 1.0
• Finish: Polished Brass
• Power Source: Hardwired AC
