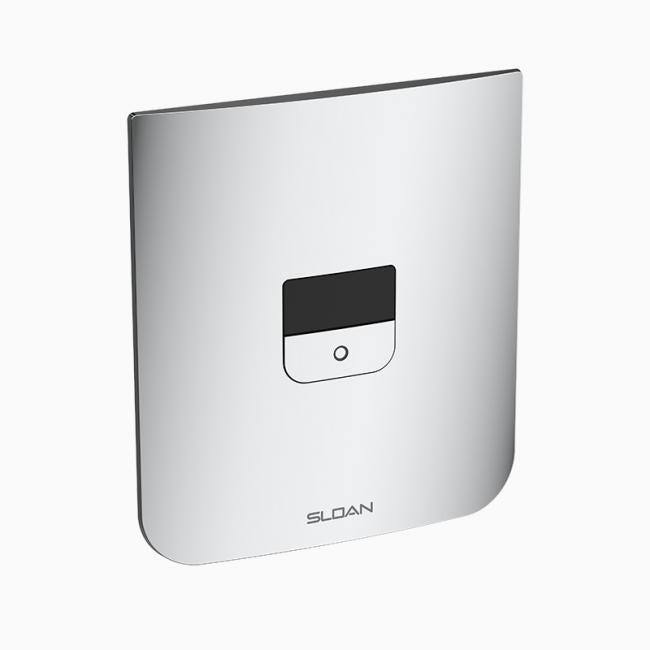

Sloan CX 8154 Concealed Sensor Water Closet Flushometer (1.28 GPF)

The Sloan CX 8154-1.28-SF is a sensor-operated piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.

Concealed sensor flushometer with front access wall plate and no rear chase required. Battery or hardwired, vandal resistant, ADA compliant.

Options on this configuration: FM. Sloan model number: CX 8154-1.28-SF. Sloan's own price-list description: CX8154-1.28 PVDSF FM.

Features

• 1.28 gpf, Brushed Stainless Finish, Fixture Connection Rear Spud, Single Flush, Sensor-Operated, Short V500A & Adjustable Flush Connection Vacuum Breaker, Front Accessible Wall Box
• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• Sensor activated, hands-free operation
• Battery operated with hardwired option
• Electronic override button
• Low battery indicator light
• Vandal resistant wall plate
• Adjustable flush connection
• 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a front accessible wall box.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: CX 8154-1.28-SF
• Certifications: ADA, Buy American Act, BABA, IAPMO
• Fixture Served: Water Closet
• Body Style: Concealed
• Spud Connection: Rear Spud
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Brushed Stainless
• Vandal Resistant: Yes
• Backflow Device: Vacuum Breaker
• Wall Box Type: Front Accessible
• Sensing Range (in): 22"-46"
