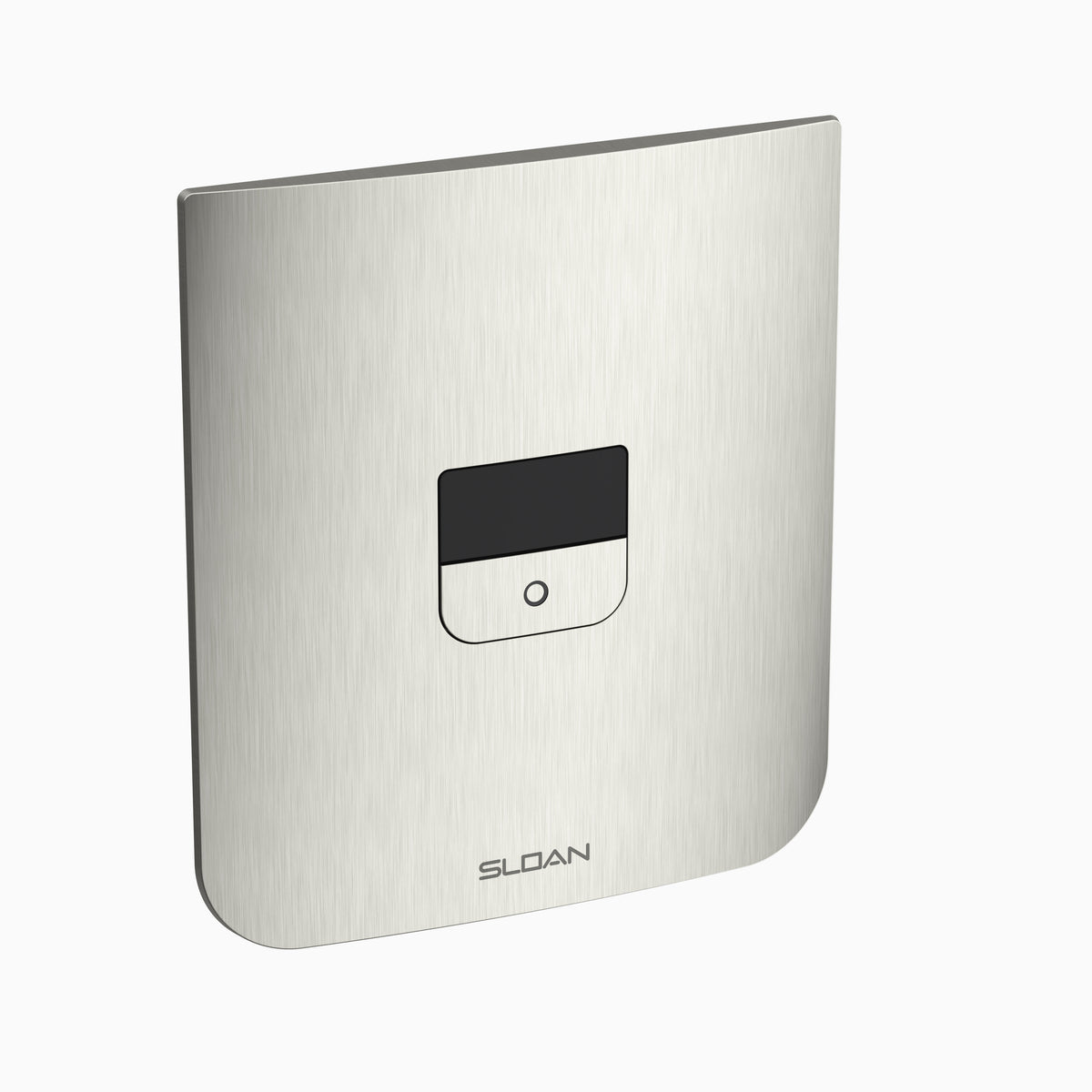

Sloan CX 8198 Concealed Battery-Powered Sensor Urinal Flushometer (0.125 GPF), Brushed Nickel

The Sloan CX 8198-0.125-BN is a sensor-operated piston-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.

Sloan CX 8198 concealed sensor urinal flushometer with front access wall plate, no rear chase needed, and battery or hardwired power. ADA compliant.

Base configuration: no option suffixes on this model number (CX 8198-0.125-BN).

Features

• 0.125 gpf, Filtered, Brushed Nickel Finish, Fixture Connection Rear Spud, Single Flush, Integrated Control Stop, 3.25"-4.25" L Dimension, Adjustable Flush Connection Outlet Tube, Electrical Override, Battery with Hardwired Option, Sensor-Operated, Short V500A & Adjustable Flush Connection Vacuum Breaker, Front Accessible Wall Box
• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• Sensor activated, hands-free operation
• Battery operated with hardwired option
• Electronic override button
• low Battery indicator light
• vandal resistant wall plate
• Adjustable flush connection

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a front accessible wall box.

How is it powered, and what happens in a power outage?

Battery-powered by default, with an optional hardwired backup.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and WaterSense.

What control stop ships with this valve?

Integrated, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Sensor
• Control Stop: Integrated
• MPN: CX 8198-0.125-BN
• Certifications: ADA, ASSE-1001, Buy American Act, BABA, IAPMO, WaterSense
• Fixture Served: Urinal
• Body Style: Concealed
• Spud Connection: Rear Spud
• Rough-In (in): 12.625"
• L Dimension (in): 3-1/4"-4-1/4"
• Volume per Flush (gal): 0.125
• Dual Flush: No
• Finish: Brushed Nickel
• Vandal Resistant: Yes
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 20
• Max Operating Pressure (PSI): 80
• Power Source: Battery with Hardwired Option
• Override Type: Electrical Override
• Wall Box Type: Front Accessible
• Sensing Range (in): 15"-34"
