Specifications
Description

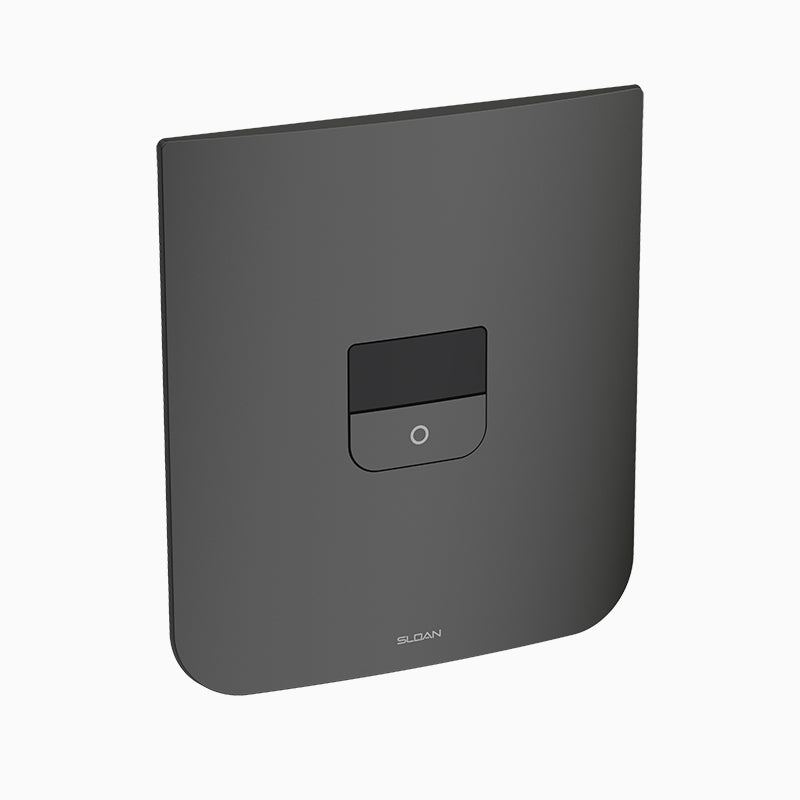

The Sloan CX 8158-1.6-GR is a sensor-operated piston-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.
Sloan CX 8158 concealed sensor flushometer with front access wall plate, no chase required. Battery or hardwired, vandal resistant, ADA compliant.
Base configuration: no option suffixes on this model number (CX 8158-1.6-GR).
Features
- 1.6 gpf, Filtered, Graphite Finish, Fixture Connection Rear Spud, Single Flush, Integrated Control Stop, 3.25"-4.25" L Dimension, Adjustable Flush Connection Outlet Tube, Electrical Override, Battery with Hardwired Option, Sensor-Operated, Short V500A & Adjustable Flush Connection Vacuum Breaker, Front Accessible Wall Box
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- Sensor activated, hands-free operation
- Battery operated with hardwired option
- Electronic override button
- Low battery indicator light
- Vandal resistant wall plate
- Adjustable flush connection
- 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a front accessible wall box.
- How is it powered, and what happens in a power outage?
- Battery-powered by default, with an optional hardwired backup.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and WaterSense.
- What control stop ships with this valve?
- Integrated, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Sensor
- Control Stop: Integrated
- MPN: CX 8158-1.6-GR
- Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 12.625"
- L Dimension (in): 3-1/4"-4-1/4"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Graphite
- Vandal Resistant: Yes
- Backflow Device: Vacuum Breaker
- Min Operating Pressure (PSI): 20
- Max Operating Pressure (PSI): 80
- Power Source: Battery with Hardwired Option
- Override Type: Electrical Override
- Wall Box Type: Front Accessible
- Sensing Range (in): 22"-46"
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | CX 8158 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Shutoff | Integrated | Fixture Served | Water Closet |
| Backflow device | Vacuum Breaker | Body style | Concealed |
| Coating | Graphite | Cycle volume gal | 1.6 gal |
| Dual flush | No | L dimension in | 3-1/4"-4-1/4" |
| Operating pressure min psi | 20 PSI | Rough in in | 12.625" |
| Spud connection | Rear Spud | Vandal resistant | Yes |
| Override type | Electrical Override | Power source | Battery with Hardwired Option |
| Sensing range in | 22"-46" | Wall box type | Front Accessible |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| WaterSense | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | CX 8158
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 3/4"
|
| Outlet Size | 1-1/2"
| 3/4"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Sensor
| Sensor
|
| Certifications | ADA, Buy American Act, BABA, IAPMO, WaterSense
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
