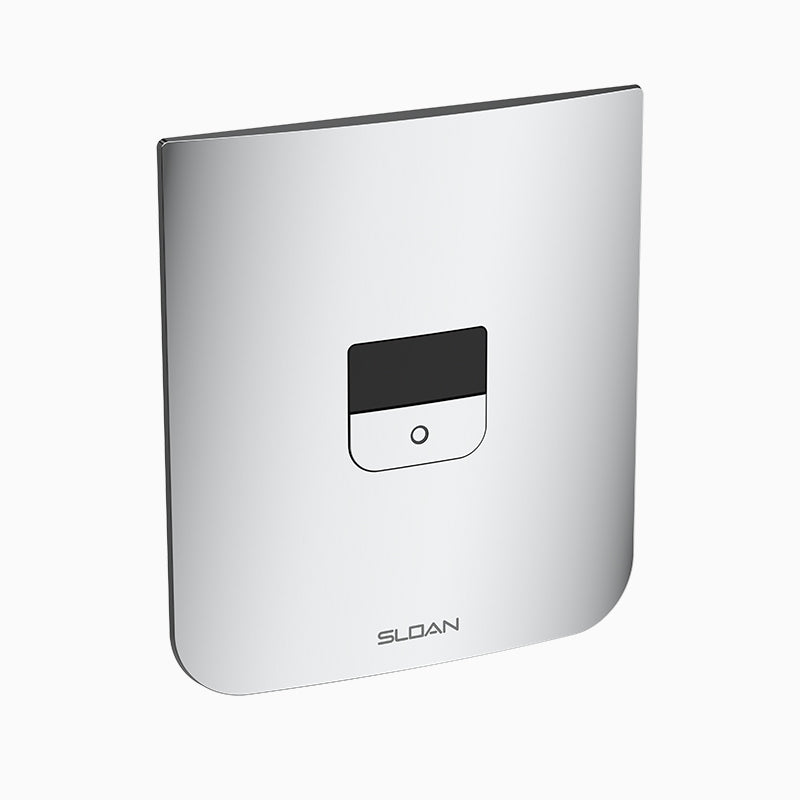

Sloan CX 8158 Concealed Sensor Water Closet Flushometer, less Plate, SKU 34003036

The Sloan CX8158-1.1 is a sensor-operated piston-type flush valve for a water closet.

Sloan CX 8158 concealed sensor flushometer with front access wall plate, no chase required. Battery or hardwired, vandal resistant, ADA compliant.

Options on this configuration: LESS; PLATE. Sloan model number: CX8158-1.1. Sloan's own price-list description: CX8158-1.1 LESS PLATE.

Features

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• Sensor activated, hands-free operation
• Battery operated with hardwired option
• Electronic override button
• Low battery indicator light
• Vandal resistant wall plate
• Adjustable flush connection
• 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Specifications

• Type: Flushometer
• Operation: Sensor
• MPN: CX8158-1.1
• Fixture Served: Water Closet
• Body Style: Concealed
• Vandal Resistant: Yes
