Description

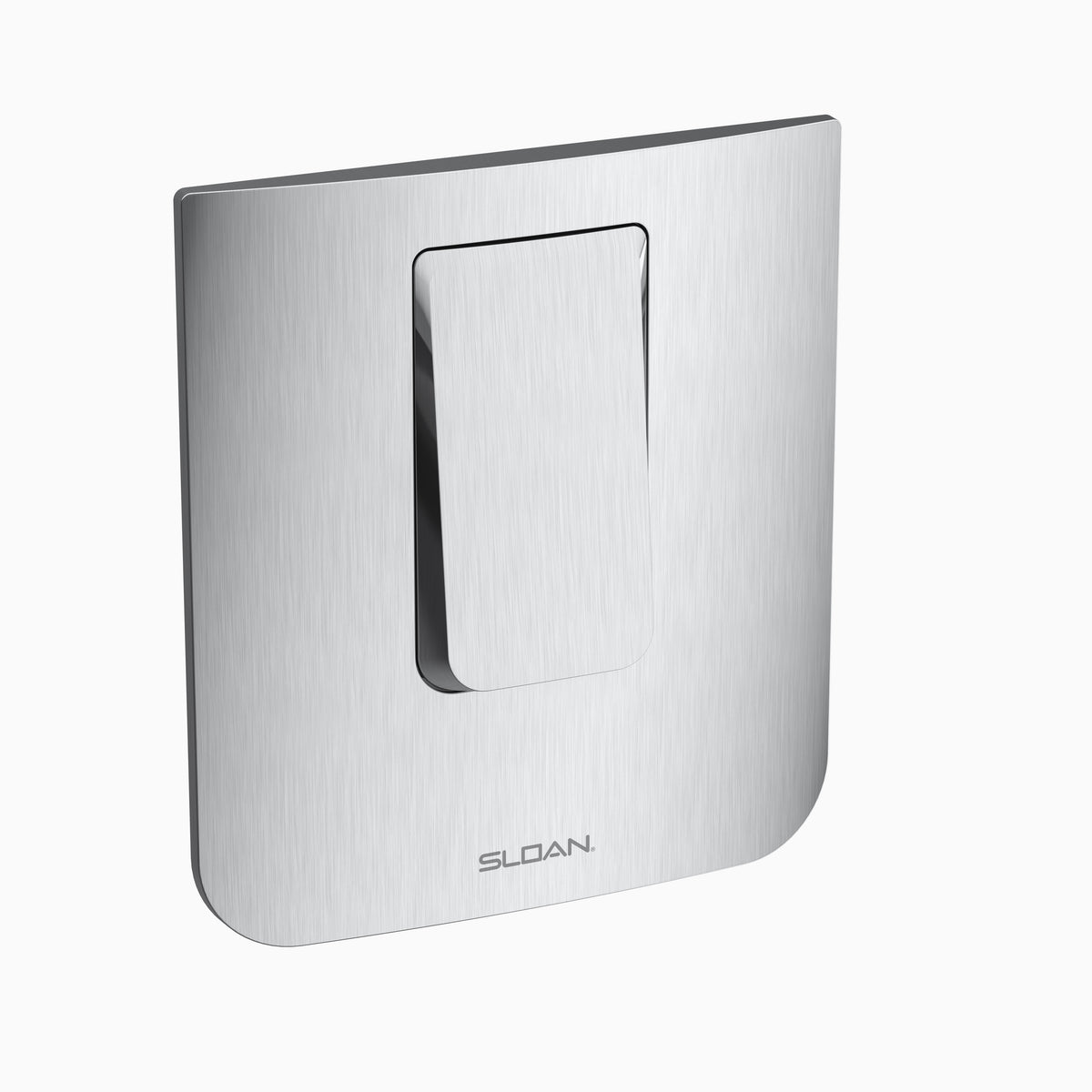

The Sloan CX 198-0.125-SF is a manual piston-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.
Sloan CX 198 concealed manual urinal flushometer with front access wall plate, no rear chase needed, ADA push button, and vandal resistant design.
Base configuration: no option suffixes on this model number (CX 198-0.125-SF).
Features
- 0.125 gpf, Filtered, Brushed Stainless Finish, Fixture Connection Rear Spud, Single Flush, Integrated Control Stop, 3.25"-4.25" L Dimension, Adjustable Flush Connection Outlet Tube, ADA Compliant Push Button, Short V500A & Adjustable Flush Connection Vacuum Breaker, Front Accessible Wall Box
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- ADA compliant push button
- Vandal resistant wall plate
- Adjustable flush connection
- 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a front accessible wall box.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA.
- What control stop ships with this valve?
- Integrated, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Manual
- Control Stop: Integrated
- MPN: CX 198-0.125-SF
- Certifications: ADA, ASSE-1001, Buy American Act, BABA, IAPMO
- Fixture Served: Urinal
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 12.625"
- L Dimension (in): 3-1/4"-4-1/4"
- Volume per Flush (gal): 0.125
- Dual Flush: No
- Finish: Brushed Stainless
- Vandal Resistant: Yes
- Backflow Device: Vacuum Breaker
- Min Operating Pressure (PSI): 20
- Max Operating Pressure (PSI): 80
- Wall Box Type: Front Accessible
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | CX 198 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Shutoff | Integrated | Fixture Served | Urinal |
| Backflow device | Vacuum Breaker | Body style | Concealed |
| Coating | Brushed Stainless | Cycle volume gal | 0.125 gal |
| Dual flush | No | L dimension in | 3-1/4"-4-1/4" |
| Operating pressure min psi | 20 PSI | Rough in in | 12.625" |
| Spud connection | Rear Spud | Vandal resistant | Yes |
| Wall box type | Front Accessible | — | — |
Certifications & Standards
| ADA | ASSE-1001 |
| Buy American Act | BABA |
| IAPMO | — |
