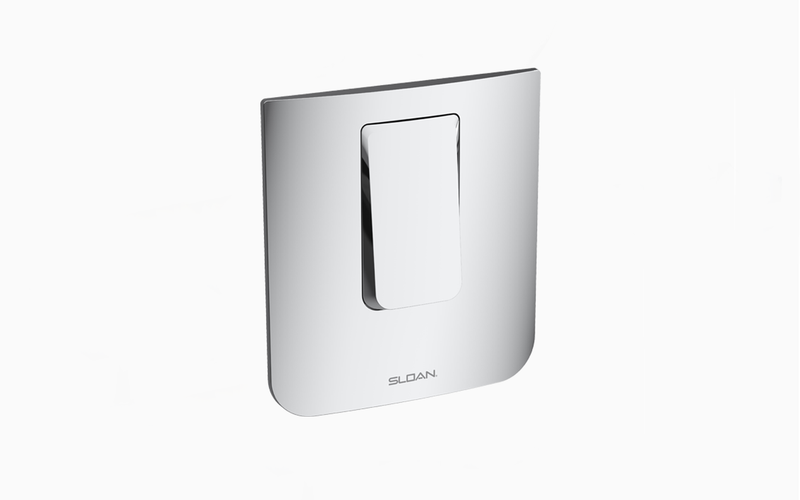

Sloan CX-154 Concealed Manual Flushometer

The Sloan CX154-1.28 is a manual piston-type flush valve for a water closet.

Concealed manual water closet flushometer with front access installation, ADA compliant push button, and vandal resistant plate for commercial facilities.

Options on this configuration: LESS; PLATE. Sloan model number: CX154-1.28. Sloan's own price-list description: CX154-1.28 LESS PLATE.

Features

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button
• Vandal resistant wall plate
• Adjustable flush connection
• 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: CX154-1.28
• Fixture Served: Water Closet
• Body Style: Concealed
• Vandal Resistant: Yes
