Description

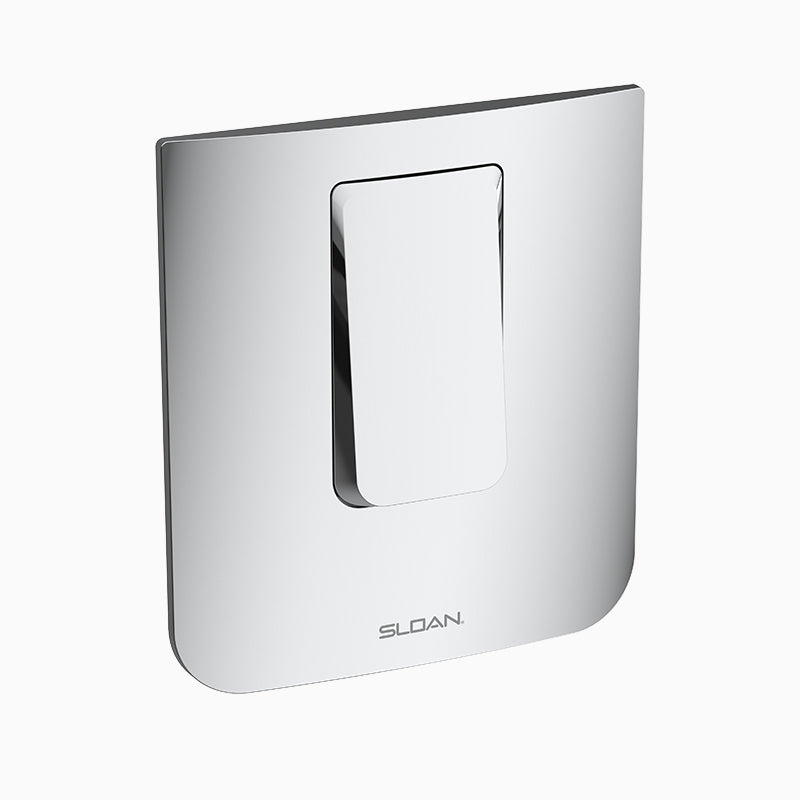

The Sloan Cx 198-0.125 is a manual piston-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a concealed body.
Sloan CX 198 concealed manual urinal flushometer with front access wall plate, no rear chase needed, ADA push button, and vandal resistant design.
Options on this configuration: LESS; PLATE. Sloan model number: Cx 198-0.125. Sloan's own price-list description: CX 198-0.125 LESS PLATE.
Features
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- ADA compliant push button
- Vandal resistant wall plate
- Adjustable flush connection
- 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Cx 198-0.125
- Fixture Served: Urinal
- Body Style: Concealed
- Volume per Flush (gal): 0.125
- Vandal Resistant: Yes
Details
| Series | CX 198 | Device Type | Flushometer |
| Operation | Manual | Options | LESS, PLATE |
| Fixture Served | Urinal | Body style | Concealed |
| Cycle volume gal | 0.125 gal | Vandal resistant | Yes |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | CX 198
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Manual
| Manual
|
| Options | LESS, PLATE
| No Control Stop (XD)
|
