Sloan CX 198-0.25 Concealed Manual Flushometer, 0.25 gpf

The Sloan Cx 198-0.25 is a manual piston-type flush valve for a urinal. It delivers 0.25 gallons per flush, with a concealed body.

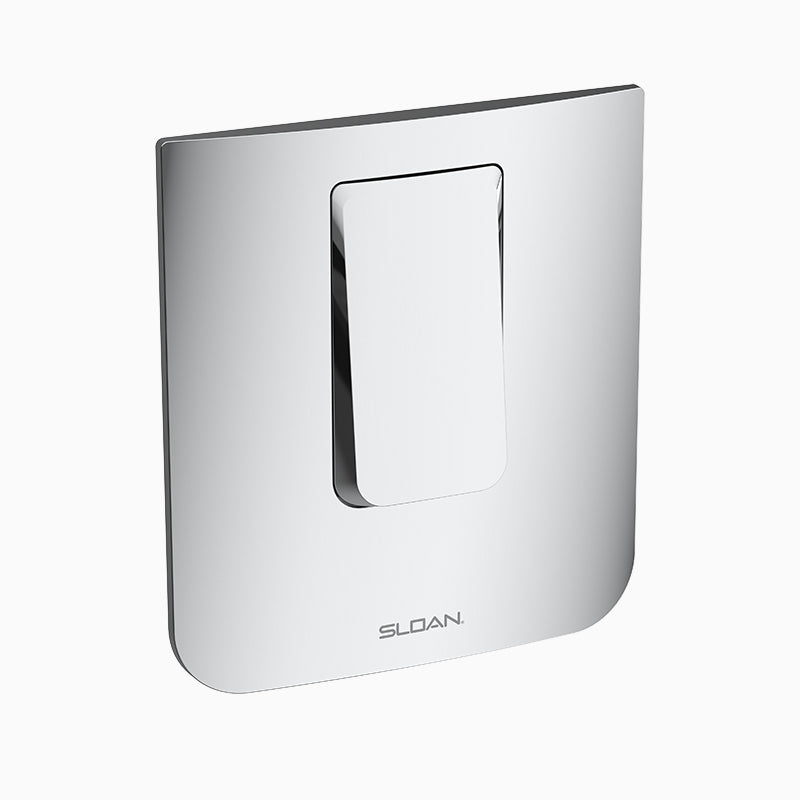

Sloan CX 198 concealed manual urinal flushometer with front access wall plate, no rear chase needed, ADA push button, and vandal resistant design.

Options on this configuration: LESS; PLATE. Sloan model number: Cx 198-0.25. Sloan's own price-list description: CX 198-0.25 LESS PLATE.

Features

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button
• Vandal resistant wall plate
• Adjustable flush connection
• 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Cx 198-0.25
• Fixture Served: Urinal
• Body Style: Concealed
• Volume per Flush (gal): 0.25
• Vandal Resistant: Yes
