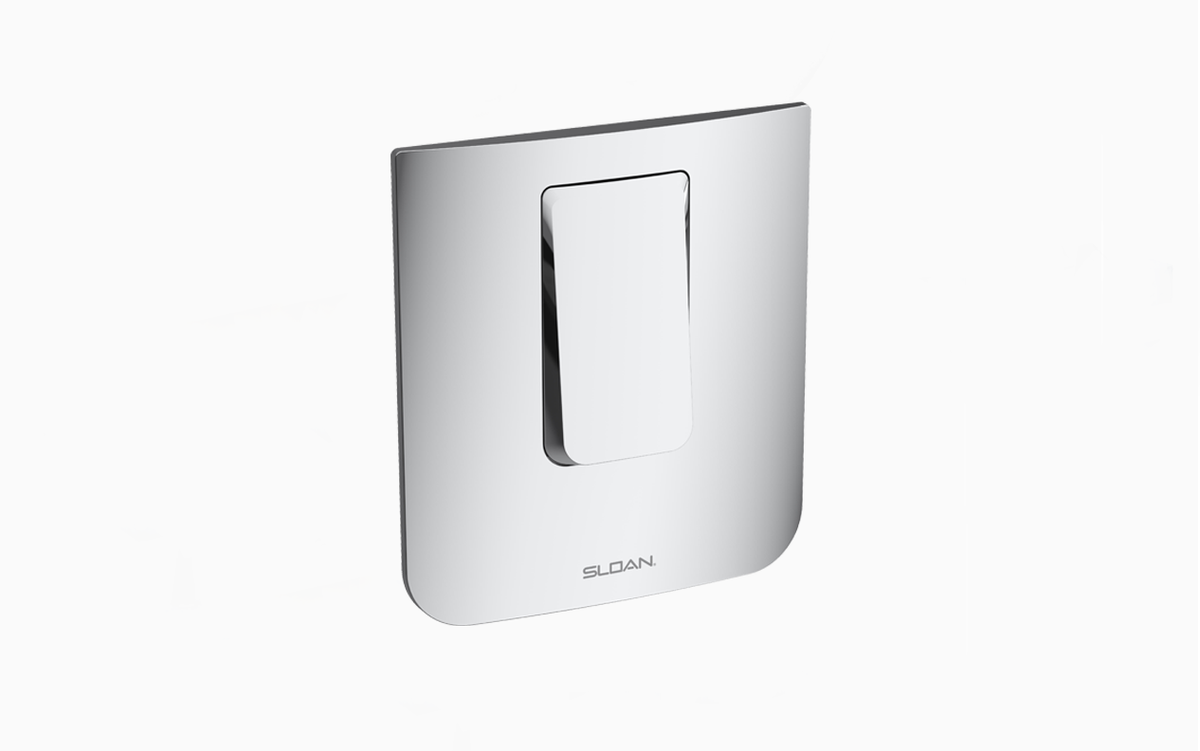

The Sloan CX-154-1.28-CP is a manual piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.
Concealed manual water closet flushometer with front access installation, ADA compliant push button, and vandal resistant plate for commercial facilities.
Options on this configuration: FM. Sloan model number: CX-154-1.28-CP. Sloan's own price-list description: CX 154-1.28 CP FM.
Features
- 1.28 gpf, Filtered, Polished Chrome Finish, Fixture Connection Rear Spud, Single Flush, Integrated Control Stop, 3.25"-4.25" L Dimension, Adjustable Flush Connection Outlet Tube, ADA Compliant Push Button, Short V500A & Adjustable Flush Connection Vacuum Breaker, Front Accessible Wall Box
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- ADA compliant push button
- Vandal resistant wall plate
- Adjustable flush connection
- 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible. It ships with a front accessible wall box.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA.
- What control stop ships with this valve?
- Integrated, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Body Material: Semi-Red Brass
- Operation: Manual
- Control Stop: Integrated
- MPN: CX-154-1.28-CP
- Certifications: ADA, IAPMO
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Rear Spud
- L Dimension (in): 3-1/4"-4-1/4"
- Volume per Flush (gal): 1.28
- Dual Flush: No
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Backflow Device: Vacuum Breaker
- Min Operating Pressure (PSI): 20
- Max Operating Pressure (PSI): 80
- Wall Box Type: Front Accessible
Details
| Series | CX-154 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Options | FM | Shutoff | Integrated |
| Fixture Served | Water Closet | Backflow device | Vacuum Breaker |
| Body style | Concealed | Coating | Polished Chrome |
| Cycle volume gal | 1.28 gal | Dual flush | No |
| L dimension in | 3-1/4"-4-1/4" | Operating pressure min psi | 20 PSI |
| Spud connection | Rear Spud | Vandal resistant | Yes |
| Wall box type | Front Accessible | — | — |
Certifications & Standards
| ADA | IAPMO |
