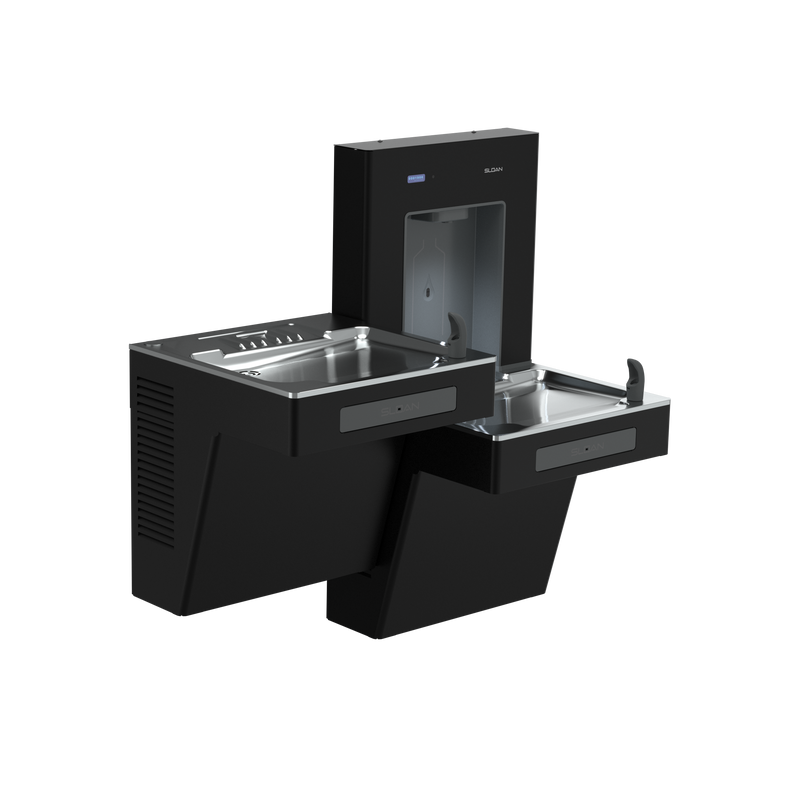

Sloan DRS120 DropSpot Bi-Level Bottle Filler, Unfiltered, Refrigerated, Black

The Sloan DRS120 is a bi-level, ADA-configured, refrigerated bottle filling station and water cooler for high-traffic commercial and institutional spaces. This model is certified lead-free for potable-water installations.

Sloan's DropSpot™ On-wall Bottle Filler with Bi-level Cooler is uniquely designed with style to promote sustainable drinking practices. It is available in both stainless and black finishes. With its touch-free sensor operated bottle filler backed by Sloan's cutting edge sensor technology, this unit provides a hygienic bottle filling experience. ADA compliant when installed properly. Up to 1.2 gpm fill rate for quick fill. Soft ambient white light indicates filter status, a backlit LED light illuminates bottle filling area when sensor is activated. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. Rough-in matches other manufacturers' for easy replacement. Versatile mounting style allows for left-high or right-high installation. Patent pending push bar is designed to be activated with any touch point to provide easy access for cartridge replacement. Anti-microbial push bar and bubbler for hygienic usage and ease of cleaning. Drop-down door assembly provides easy access to filter, making maintenance and filter change a no-sweat experience. When connected to SC Argus Pro, facility managers can remotely monitor water usage, receive filter replacement notifications, and schedule automated line flushes to simplify maintenance and support water quality programs.

Features

• Unfiltered, Refrigerated, Black
• OPTIONAL: A water filter upgrade can be added to this unit (part number 33830002). Sold separately
• Touch-free sensor operated bottle filler with 20 second max run time, Up to 1.2 gpm fill rate for quick fill with laminar flow
• Versatile mounting style allows for left-high or right-high installation, ADA compliant when installed in accordance with applicable requirements
• All models IoT compatible with subscription to SC Argus® Pro SaaS - Remotely monitor water usage and receive filter replacement notifications, helping simplify maintenance across one or multiple facilities
• Schedule and document automated line flushes through SC Argus Pro to support water quality programs and reduce manual maintenance
• Backlit LED light that illuminates bottle filling area when sensor is activated, Soft ambient white light to indicate filter status
• Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking
• Rough-in matches other manufacturers' recommended rough-in locations for easy replacement
• Antimicrobial bubbler, push bar, and other components
• Drop-down door assembly provides easy access to filter
• Patent pending push bar activates at any touch point and provides easy access for cartridge replacement
• Optional cane apron available for bi-level units to assist with ADA compliance (part 33830030, 33830031). Sold separately

Common Questions

Is this unit filtered?

No, this is an unfiltered unit; a filter upgrade kit (FA3000) is sold separately.

How much chilled water does it deliver?

8.0 GPH of 50 degrees F water.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit combining a wheelchair-accessible and a standing-height fill station in one fixture.

Does the water run continuously?

No, it shuts off automatically after 20 seconds of continuous sensor activation.

Specifications

• Type: Bottle Filling Station
• MPN: DRS120-UNFIL-REF-BLK
• Certifications: IAPMO, FCC, IAPMO IGC, OBC/QBC, NSF-61, NSF-372, TAS, UL-399, California AB 100, C-UL
• Lead-Free: Yes
• Flow Rate (GPM): 1.2
• Coating / Finish: Black
• Refrigerated: Yes
• Filtered: No
• Bi-Level: Yes
• Chilling Capacity (GPH): 8.0
• Run Time (s): 20
