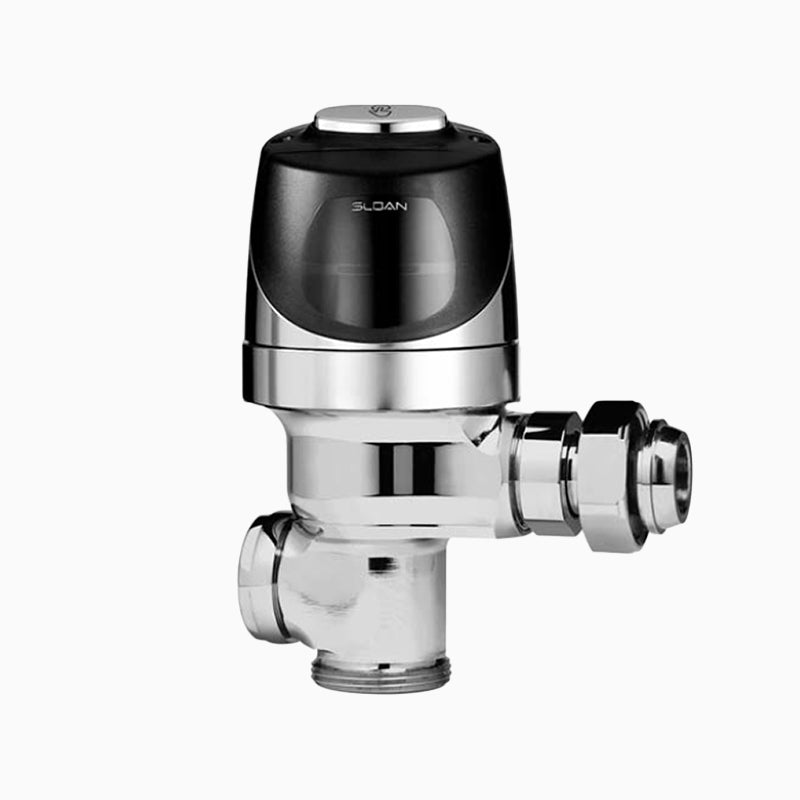

Sloan RESS-C Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, Adjustable Ground Joint for Tek Control Stop, SKU 3379059

The SLOAN RESS-C-4.5-XDT-CP is a battery-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Introducing the Sloan® Exposed Sensor Water Closet Retrofit Flushometer, a cutting-edge solution designed to modernize your restroom facilities. The SLOAN RESS-C combines advanced technology with superior performance, offering a hands-free experience that promotes hygiene and water conservation. At the heart of this innovative product is the high chloramine resistant PERMEX® synthetic rubber diaphragm, featuring Linear Filtered Bypass and Vortex Cleansing Action for optimal flushing efficiency and longevity. Engineered to meet the highest industry standards, the SLOAN RESS-C complies with applicable sections of ASSE 1037, ensuring reliability and performance you can trust. This state-of-the-art flushometer not only enhances the user experience but also contributes to improved sanitation and reduced maintenance costs in high-traffic restroom environments.

Options on this configuration: Adjustable Ground Joint for Tek Control Stop (XDT); Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SLOAN RESS-C-4.5-XDT-CP.

Features

• 4.5 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Adjustable Ground Joint for Tek Control Stop, Electrical Override, Battery
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• Control Stop: Adjustable Ground Joint for Tek
• MPN: SLOAN RESS-C-4.5-XDT-CP
• Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 4.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Override Type: Electrical Override
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
