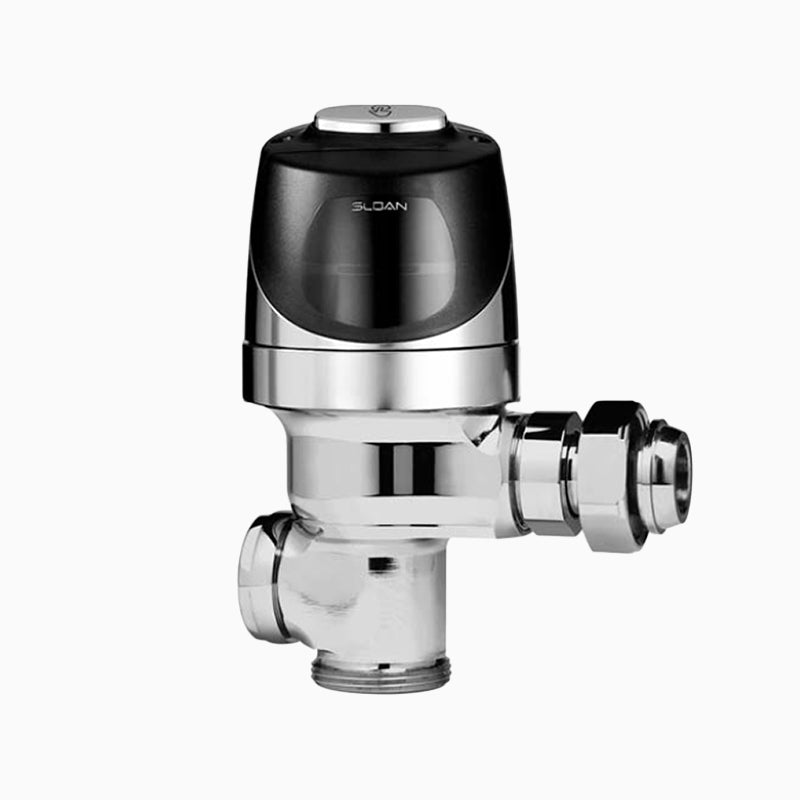

Sloan RESS-U Battery-Powered Sensor Retrofit Kit for Urinal Flushometers, Adjustable Ground Joint for Tek Control Stop, 1.5/1.0 gpf, SKU 3379053

The SLOAN RESS-U-1.5/1.0-XDT-CP is a battery-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

The Sloan® Exposed Sensor Urinal Retrofit Flushometer, also known as the SLOAN RESS-U, is a cutting-edge solution for modernizing existing urinal installations. This innovative product combines advanced technology with exceptional performance to deliver a hygienic and efficient flushing experience. The SLOAN RESS-U features a high chloramine resistant PERMEX® synthetic rubber diaphragm, incorporating Linear Filtered Bypass and Vortex Cleansing Action for superior reliability and cleanliness. Engineered to meet the highest industry standards, this flushometer complies with the applicable sections of ASSE 1037, ensuring top-quality performance and longevity. The SLOAN RESS-U is designed to seamlessly integrate into existing urinal setups, making it an ideal choice for facility upgrades and renovations. With its sensor-operated functionality, this flushometer promotes improved hygiene and water conservation, contributing to a more sustainable and user-friendly restroom environment.

Options on this configuration: Adjustable Ground Joint for Tek Control Stop (XDT); Dual-Filtered Fixed Bypass Diaphragm (DFB); 1.5/1.0 gpf. Sloan model number: SLOAN RESS-U-1.5/1.0-XDT-CP. Sloan's own price-list description: SLOAN OPT PLUS RESS-U-XDT-DFB.

Features

• 1.5/1.0 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Adjustable Ground Joint for Tek Control Stop, Electrical Override, Battery
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• Control Stop: Adjustable Ground Joint for Tek
• MPN: SLOAN RESS-U-1.5/1.0-XDT-CP
• Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Override Type: Electrical Override
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
