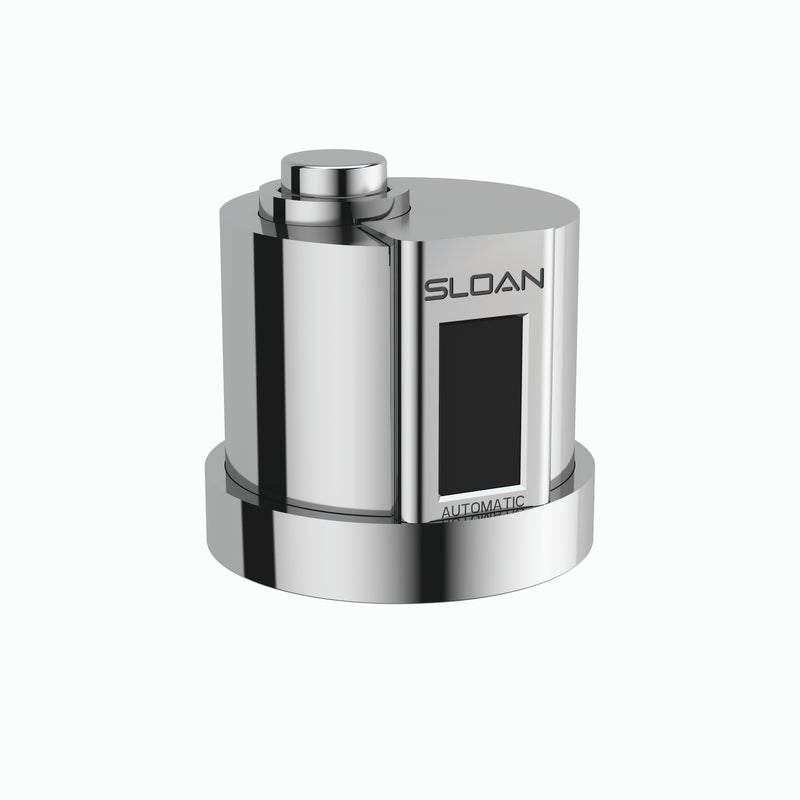

Sloan RESS-U-MC Battery-Powered Sensor Retrofit Kit for Urinal Flushometers, SKU 3379036

The SLOAN RESS-U-MC-0.25-CP is a battery-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body.

Introducing the Sloan® Exposed Sensor Urinal Retrofit Flushometer, the SLOAN RESS-U-MC, a cutting-edge solution for modern restroom facilities. This innovative product combines advanced technology with sleek design to provide a hygienic and efficient user experience. The OPTIMA Plus® Battery Powered Infrared Sensor ensures automatic, hands-free operation, making it fully ADA compliant and promoting better hygiene standards in public restrooms. The SLOAN RESS-U-MC features a state-of-the-art Infrared Sensor with Multiple-focused, Lobular Sensing Fields, enabling both high and low target detection for optimal performance. This advanced sensing technology is complemented by a Latching Solenoid Operator, ensuring precise and reliable flushing with every use. The Chrome Plated, Die Cast Metal Cover Assembly with Tempered Glass Window not only provides durability but also adds a touch of sophistication to any restroom environment. For added convenience, the SLOAN RESS-U-MC includes a Courtesy Flush® Override Button, allowing manual operation when needed. The flushometer comes with four pre-installed AA batteries and features a "Low Battery" Flashing LED indicator, ensuring continuous operation and easy maintenance. With its easy installation process and included tools, the SLOAN RESS-U-MC is the perfect choice for upgrading existing urinal systems to meet modern standards of efficiency and hygiene.

Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SLOAN RESS-U-MC-0.25-CP.

Features

• 0.25 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Electrical Override, Battery
• ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• Chrome Plated, Die Cast Metal Cover Assembly with Tempered Glass Window
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• Installation Tools Provided
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: SLOAN RESS-U-MC-0.25-CP
• Certifications: ADA, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.25
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
