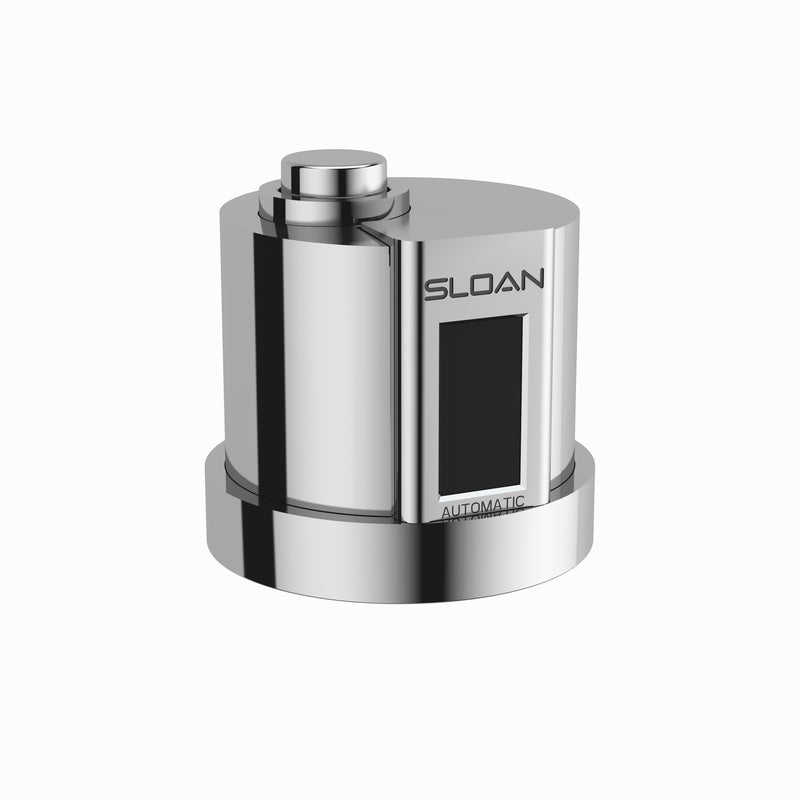

Sloan RESS-C-MC Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, SKU 3379023

The SLOAN RESS-C-MC-1.6-CP is a battery-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body.

Introducing the Sloan® Exposed Sensor Water Closet Retrofit Flushometer, SLOAN RESS-C-MC, a cutting-edge solution for modern restroom facilities. This innovative product combines advanced technology with user-friendly design to provide a hygienic and efficient flushing experience. The OPTIMA Plus® Battery Powered Infrared Sensor ensures automatic "No Hands" operation, promoting cleanliness and reducing the spread of germs in public restrooms. The SLOAN RESS-C-MC features a state-of-the-art Infrared Sensor with Multiple-focused, Lobular Sensing Fields, enabling both high and low target detection for optimal performance. The Latching Solenoid Operator and Chrome Plated, Die Cast Metal Cover Assembly with Tempered Glass Window not only provide durability but also add a touch of elegance to any restroom environment. User convenience is at the forefront of this product's design, with a three-second Flush Delay that allows for a more natural and comfortable experience. The Courtesy Flush® Override Button provides additional control when needed, while the "Low Battery" Flashing LED ensures timely maintenance. With its ADA-compliant design and easy installation process, the SLOAN RESS-C-MC is the perfect choice for upgrading existing restroom facilities to meet modern standards of hygiene and efficiency.

Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SLOAN RESS-C-MC-1.6-CP.

Features

• 1.6 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Electrical Override, Battery
• ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• Chrome Plated, Die Cast Metal Cover Assembly with Tempered Glass Window
• User friendly three (3) second Flush Delay
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• Installation Tools Provided
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: SLOAN RESS-C-MC-1.6-CP
• Certifications: ADA, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
