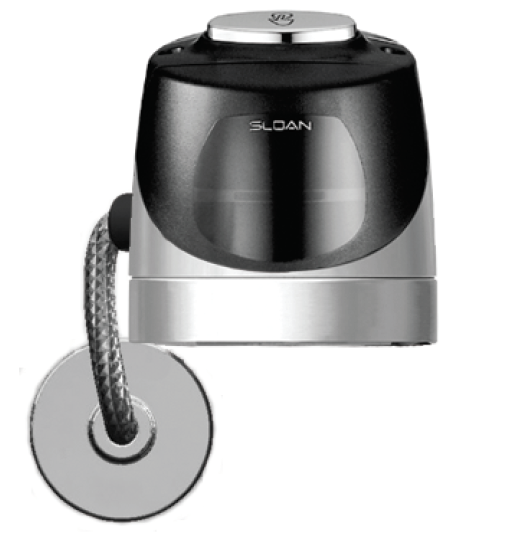

Sloan ECOS RESS-U Hardwired-Powered Sensor Retrofit Kit for Urinal Flushometers, SKU 3375420

The Sloan ECOS RESS-U-0.125-CP-HW is a hardwired sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body.

The ECOS® Exposed Sensor Urinal Retrofit Flushometer, also known as the ECOS RESS-U, is a state-of-the-art solution for modernizing existing urinal installations. This innovative product combines advanced sensor technology with the reliability of Sloan's renowned flushometer design. The ECOS RESS-U is engineered to meet the rigorous standards set forth in the applicable sections of ASSE 1037, ensuring top-tier performance and durability. Its sleek, chrome-plated metal handle cap adds a touch of elegance while maintaining ease of use. The flushometer's retrofit design allows for seamless integration into existing plumbing systems, making it an ideal choice for facility upgrades seeking to improve hygiene and water efficiency. With its cutting-edge features and compliance with various green building standards, the ECOS RESS-U represents a smart investment for facilities looking to enhance their restroom experience while reducing their environmental footprint.

Options on this configuration: Hardwired (HW); SINGLE; BUTTON. Sloan model number: ECOS RESS-U-0.125-CP-HW. Sloan's own price-list description: ECOS RESS-U-0.125-HW SINGLE BUTTON.

Features

• 0.125 gpf, Dual-Filtered Bypass, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Hardwired, Infrared
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Chrome plated metal handle cap

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Hardwired -- plan for an electrician to run power to the fixture.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: ECOS RESS-U-0.125-CP-HW
• Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 0.125
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Sensor Type: Infrared
• Override Type: Electrical Override
• Sensing Range (in): 15"-30"
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
