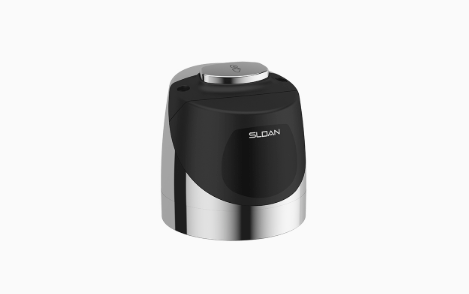

Sloan ECOS RESS-C BT Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, Polished Chrome, SKU 33754036

The Sloan ECOS RESS-C BT-1.1-CP is a battery-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the ECOS® Exposed Sensor Water Closet Retrofit Flushometer, a cutting-edge solution for modern restroom facilities. The ECOS RESS-C BT model offers advanced features that combine efficiency, convenience, and smart technology. This wireless connected device provides real-time diagnostics and adjustable product settings, allowing facility managers to optimize performance and water usage. The Sloan Connect App®, compatible with smartphones and tablets, puts control at your fingertips. Users will appreciate the thoughtful design elements, including a user-friendly three-second flush delay and a "Low Battery" flashing LED indicator. Installation is made simple with a sweat solder adapter, cover tube, and cast wall flange with set screw. Utilizing infrared sensor technology with multiple-focused, lobular sensing fields, the ECOS RESS-C BT ensures accurate high and low target detection for reliable operation. The fixed metering bypass and absence of external volume adjustment contribute to consistent water conservation. With its PERMEX® synthetic rubber diaphragm featuring a dual filtered fixed bypass, this flushometer is built for longevity and reduced maintenance requirements. The ECOS® Exposed Sensor Water Closet Retrofit Flushometer is available in a variety of finishes to suit any restroom aesthetic. It complies with relevant industry standards and certifications, making it an ideal choice for commercial and institutional applications where performance, hygiene, and sustainability are paramount.

Base configuration: no option suffixes on this model number (ECOS RESS-C BT-1.1-CP).

Features

• 1.1 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Electrical Override, Battery
• Wireless connected device for real time diagnostic and adjustable product settings
• Sloan Connect App® readily available for smart phone and tablet devices
• User friendly three (3) second Flush Delay
• “Low Battery” Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Four (4) Size AA Battery Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: ECOS RESS-C BT-1.1-CP
• Certifications: ADA, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 1.1
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: Bluetooth
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
