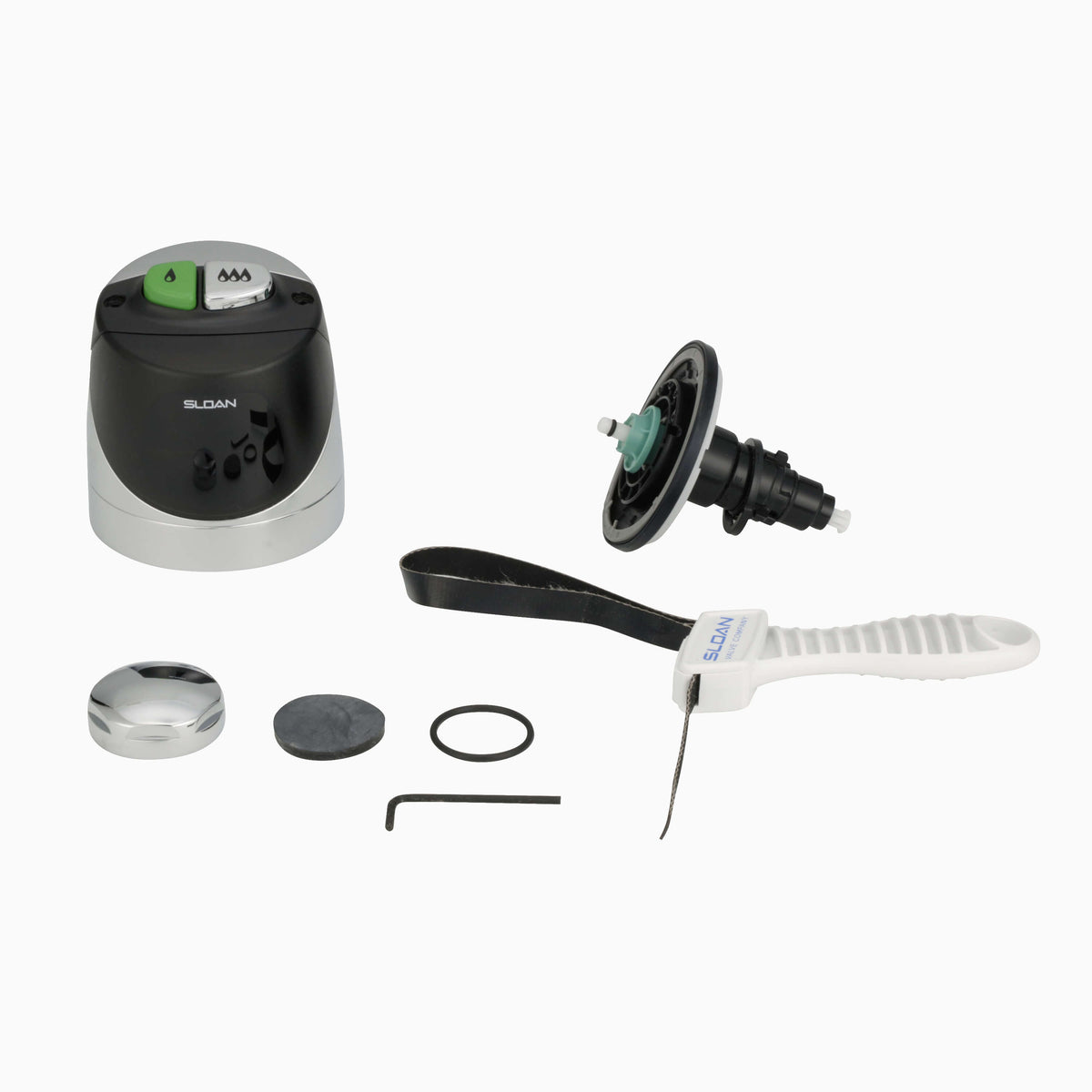

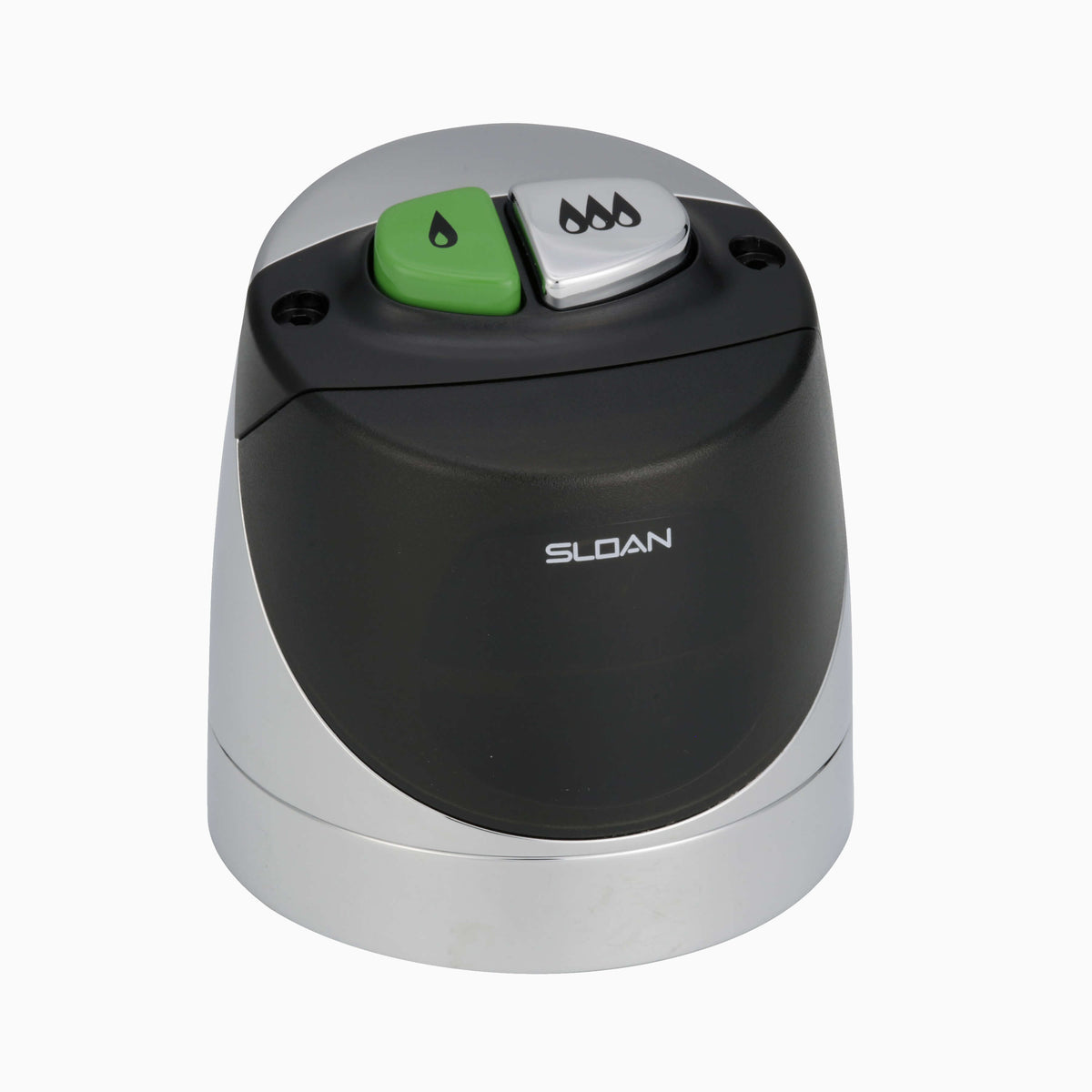

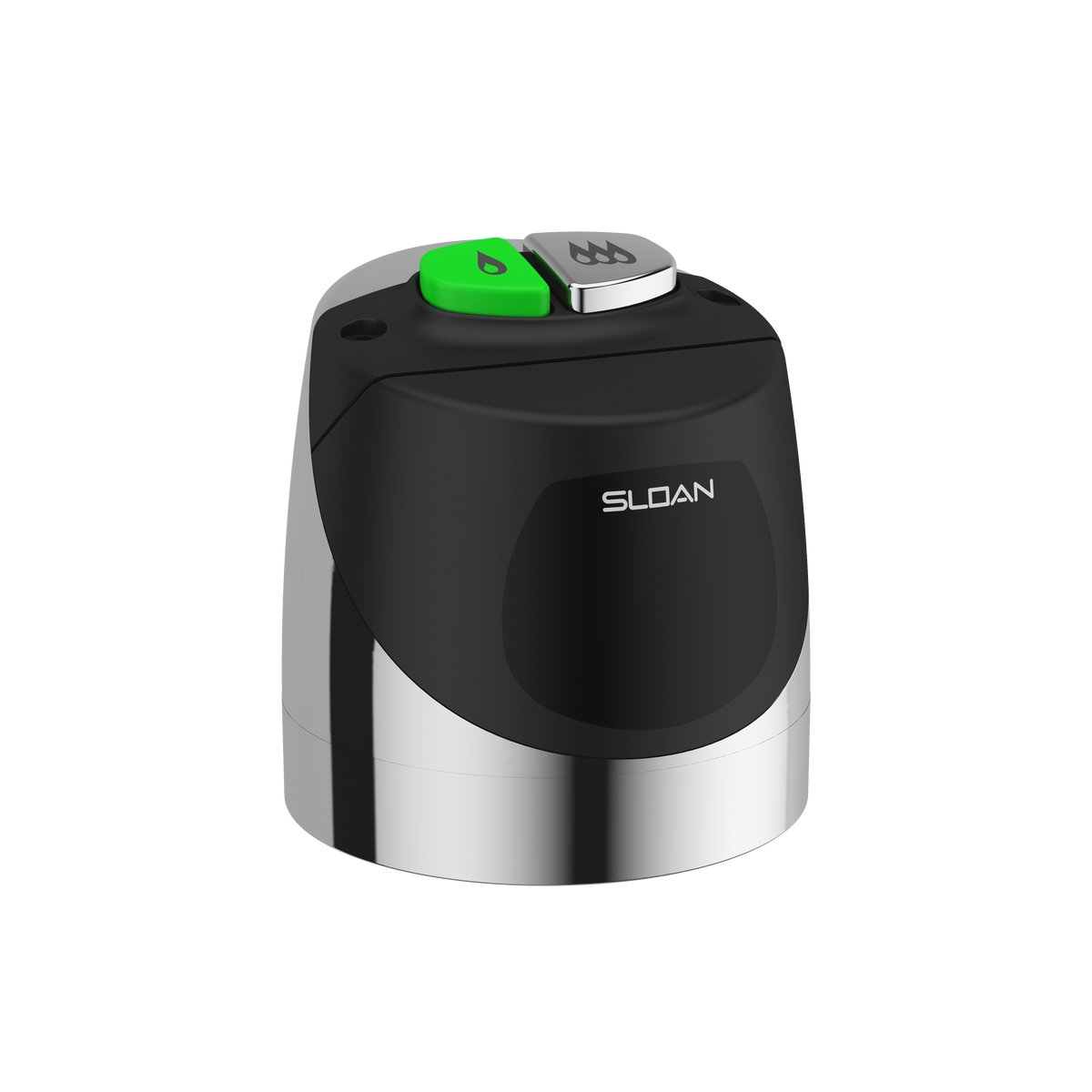

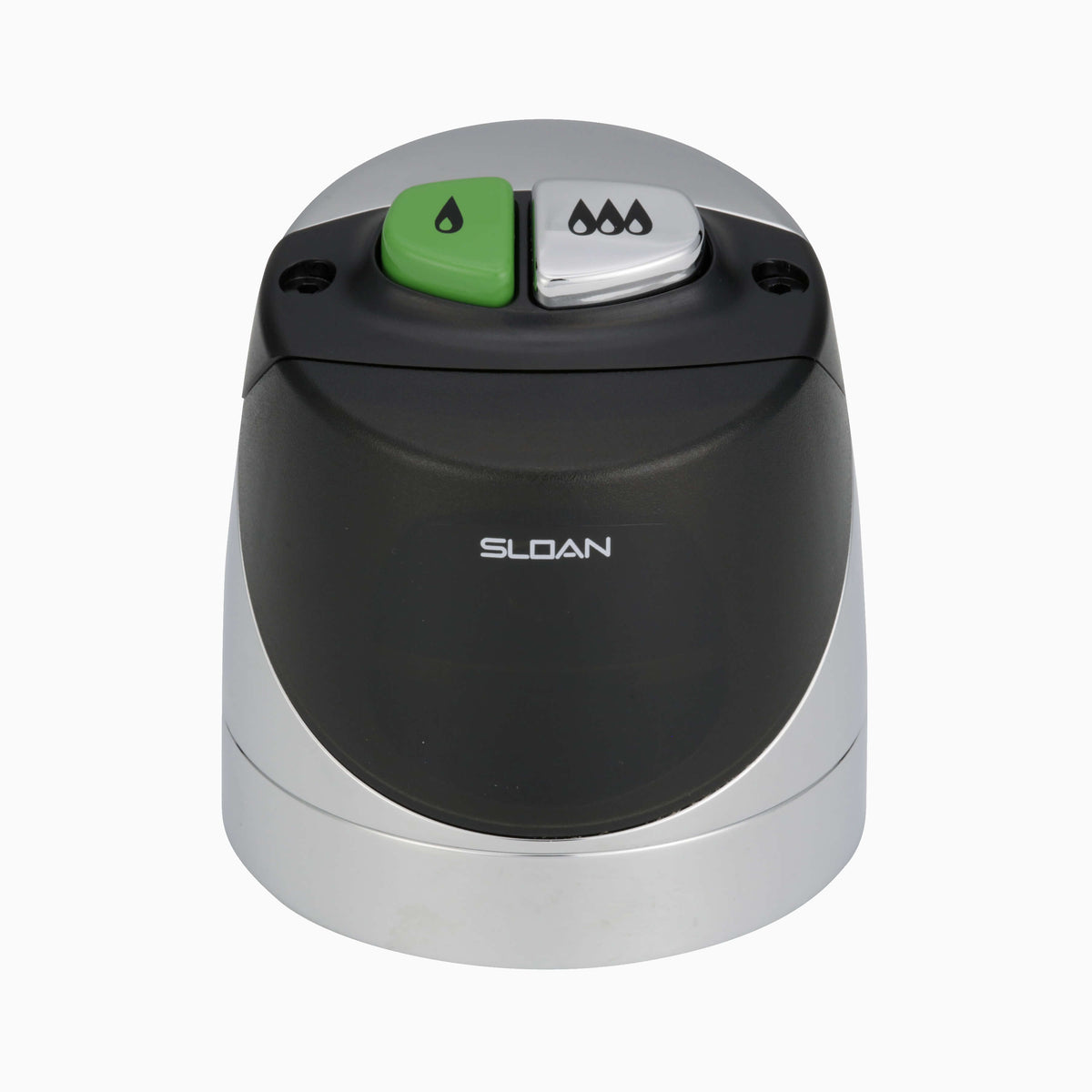

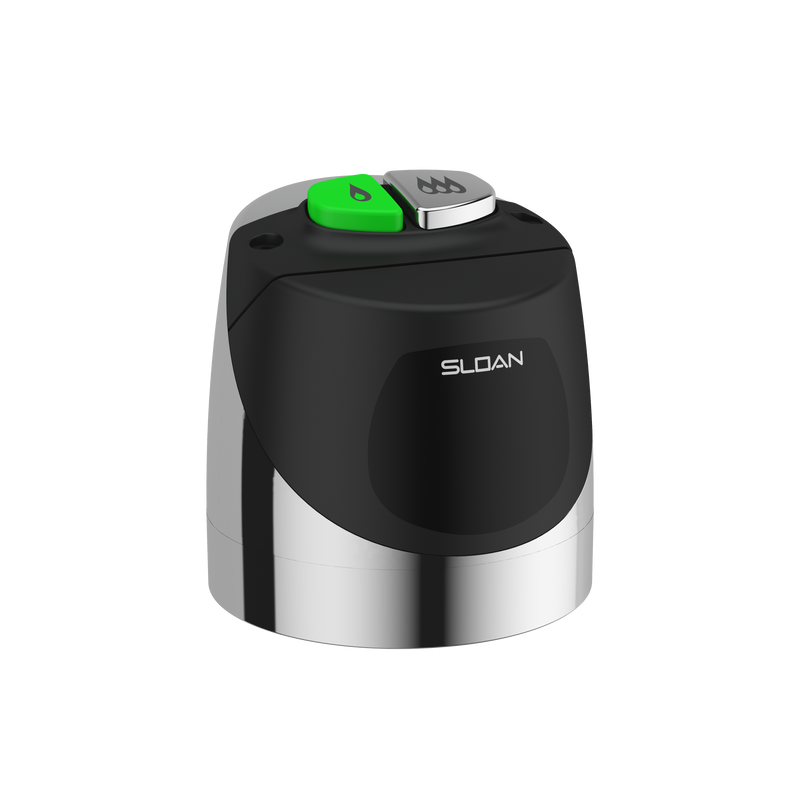

Sloan ECOS RESS-C BT DF Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, 1.28/1.1 gpf Polished Chrome

The Sloan ECOS RESS-C BT DF-1.28/1.1-CP is a battery-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the ECOS® Exposed Sensor Water Closet Retrofit Flushometer, a cutting-edge solution for modern restroom facilities. This innovative ECOS RESS-C BT DF model combines advanced technology with water conservation features to deliver superior performance and efficiency. The wireless connectivity enables real-time diagnostics and adjustable settings, allowing facility managers to optimize performance through the user-friendly Sloan Connect App® available for smartphones and tablets. The ECOS® Flushometer incorporates a thoughtful design with a three-second flush delay and a "Low Battery" flashing LED indicator for easy maintenance. Its robust construction includes a sweat solder adapter with cover tube and a cast wall flange with set screw, ensuring durability and simplified installation. Powered by four AA batteries, this flushometer utilizes an infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. Water conservation is at the forefront of the ECOS® design, featuring a fixed metering bypass and no external volume adjustment. The flex tube diaphragm, engineered for improved longevity, works in tandem with the PERMEX® synthetic rubber diaphragm and dual filtered fixed bypass to reduce maintenance needs. For added convenience, the flushometer includes a Courtesy Flush® override button, providing users with manual flush capability when needed.

Options on this configuration: 1.28/1.1 gpf. Sloan model number: ECOS RESS-C BT DF-1.28/1.1-CP. Sloan's own price-list description: ECOS RESS-C-1.28/1.1 BT Dual Flush.

Features

• 1.28/1.1 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Dual Flush, Electrical Override, Battery
• Wireless connected device for real time diagnostic and adjustable product settings
• Sloan Connect App® readily available for smart phone and tablet devices
• User friendly three (3) second Flush Delay
• “Low Battery” Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Four (4) Size AA Battery Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: ECOS RESS-C BT DF-1.28/1.1-CP
• Certifications: ADA, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Dual Flush: Yes
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: Bluetooth
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
