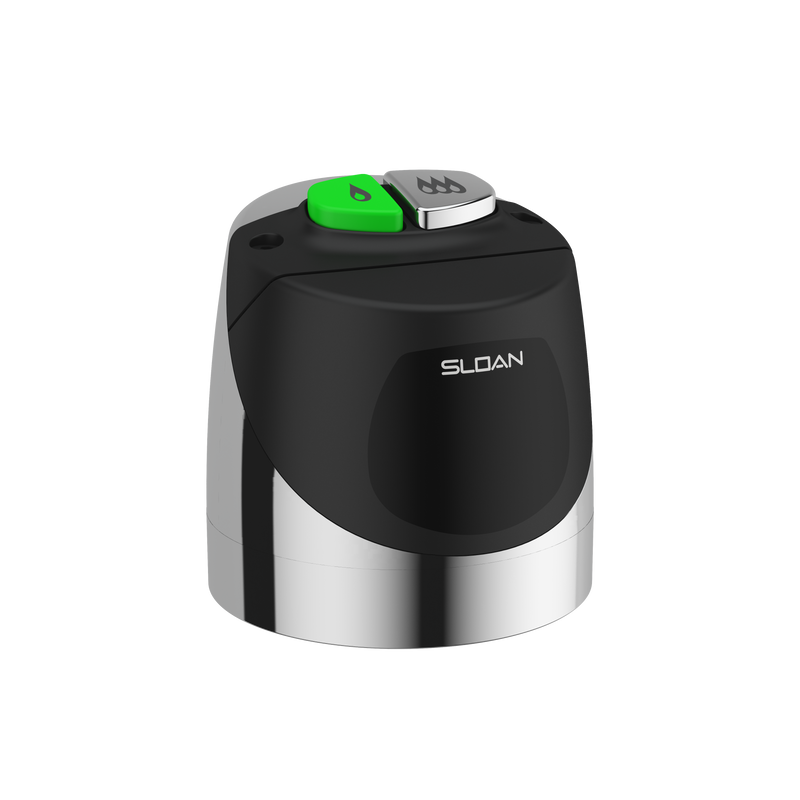

Sloan ECOS RESS-C DF Battery-Powered Sensor Retrofit Kit for Water Closet Flushometers, Less Handle Body, Option LH Polished Chrome

The Sloan ECOS RESS-C DF-1.6/1.1-CP-LH is a battery-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the ECOS® Exposed Sensor Water Closet Retrofit Flushometer, a cutting-edge solution for efficient and hygienic restroom management. This innovative product, also known as the ECOS RESS-C Dual Flush, is designed to seamlessly upgrade existing manual flush valves to sensor-operated systems, enhancing both performance and user experience. The ECOS RESS-C Dual Flush adheres to the highest industry standards, complying with applicable sections of ASSE 1037 to ensure reliable and safe operation. With its advanced sensing technology, this flushometer delivers precise and consistent flushing, reducing water waste and promoting sustainability in commercial and institutional settings. Available in elegant finishes such as Polished Chrome, Brushed Stainless, and Brushed Nickel, the ECOS RESS-C Dual Flush not only improves functionality but also adds a touch of sophistication to any restroom design. Backed by Sloan's reputation for quality and innovation, this retrofit flushometer offers a cost-effective solution for facility managers looking to modernize their restroom fixtures without extensive renovations.

Options on this configuration: Less Handle Body (LH); 1.6/1.1 gpf; LH. Sloan model number: ECOS RESS-C DF-1.6/1.1-CP-LH. Sloan's own price-list description: ECOS RESS-C-1.6/1.1-LH DUAL FLUSH.

Features

• 1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, Less Handle Body Handle, Electrical Override, Battery, Infrared
• User friendly three (3) second flush delay
• Low battery indicator
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Four (4) Size AA Battery Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: ECOS RESS-C DF-1.6/1.1-CP-LH
• Certifications: ADA, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Dual Flush: Yes
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Sensing Range (in): 22"-42"
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
