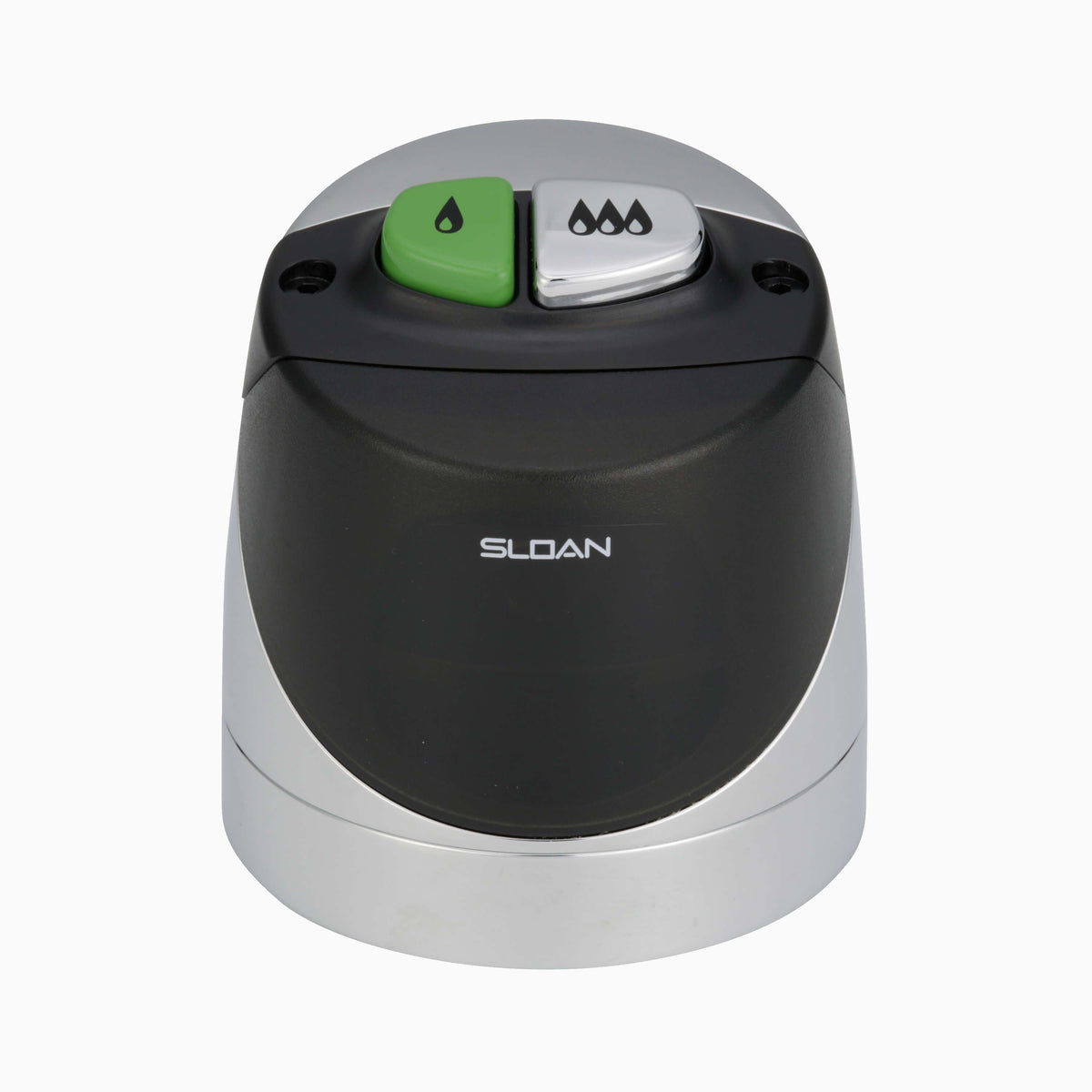

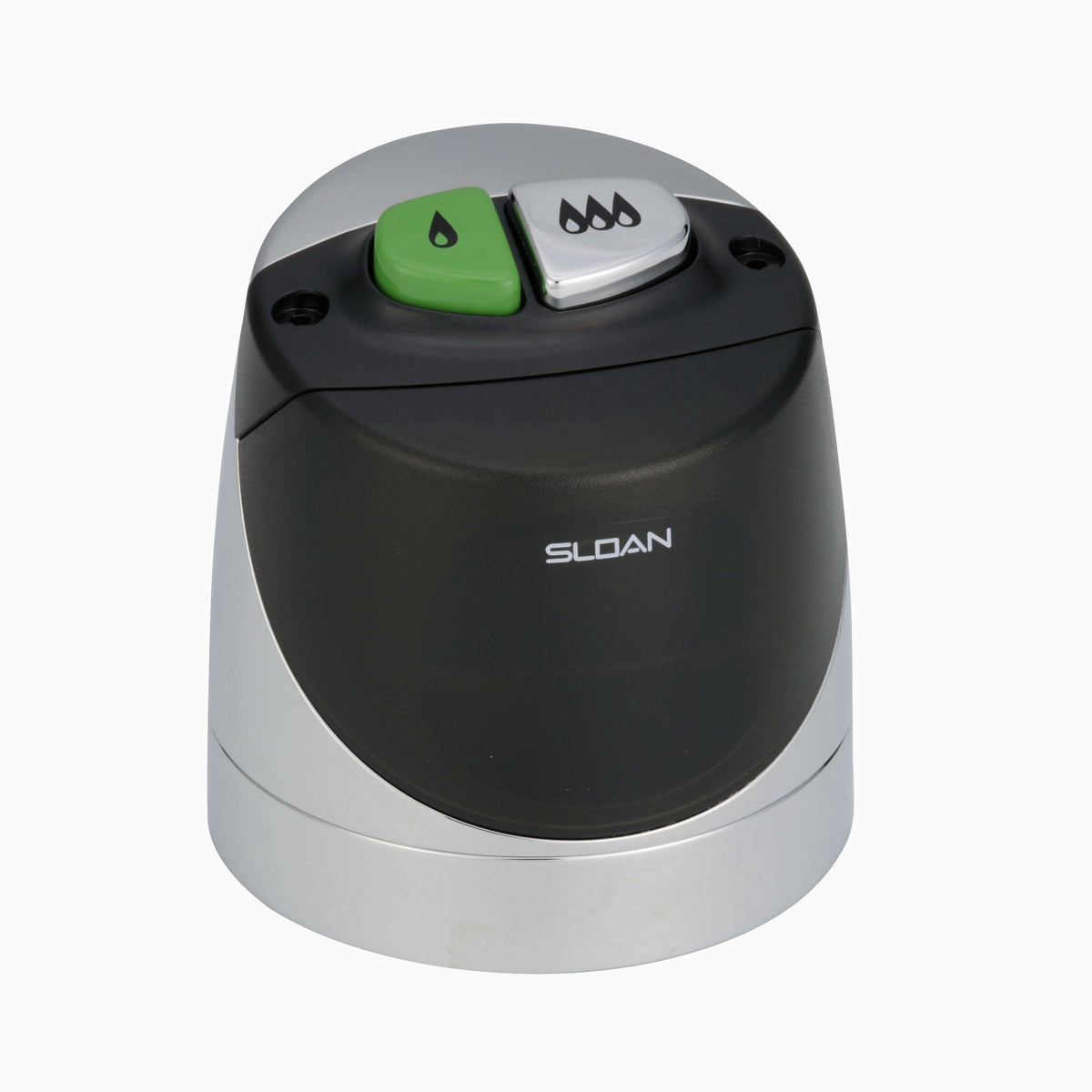

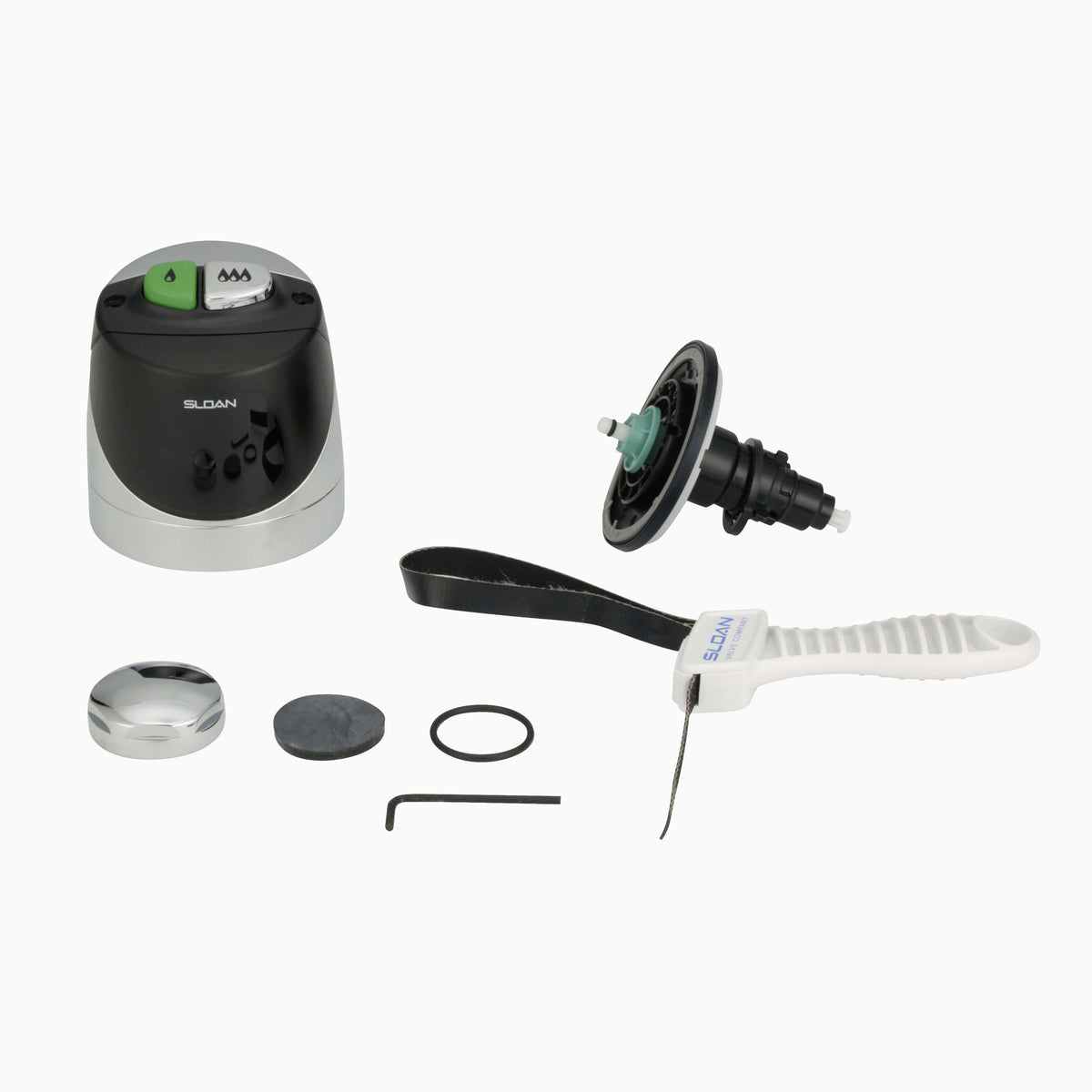

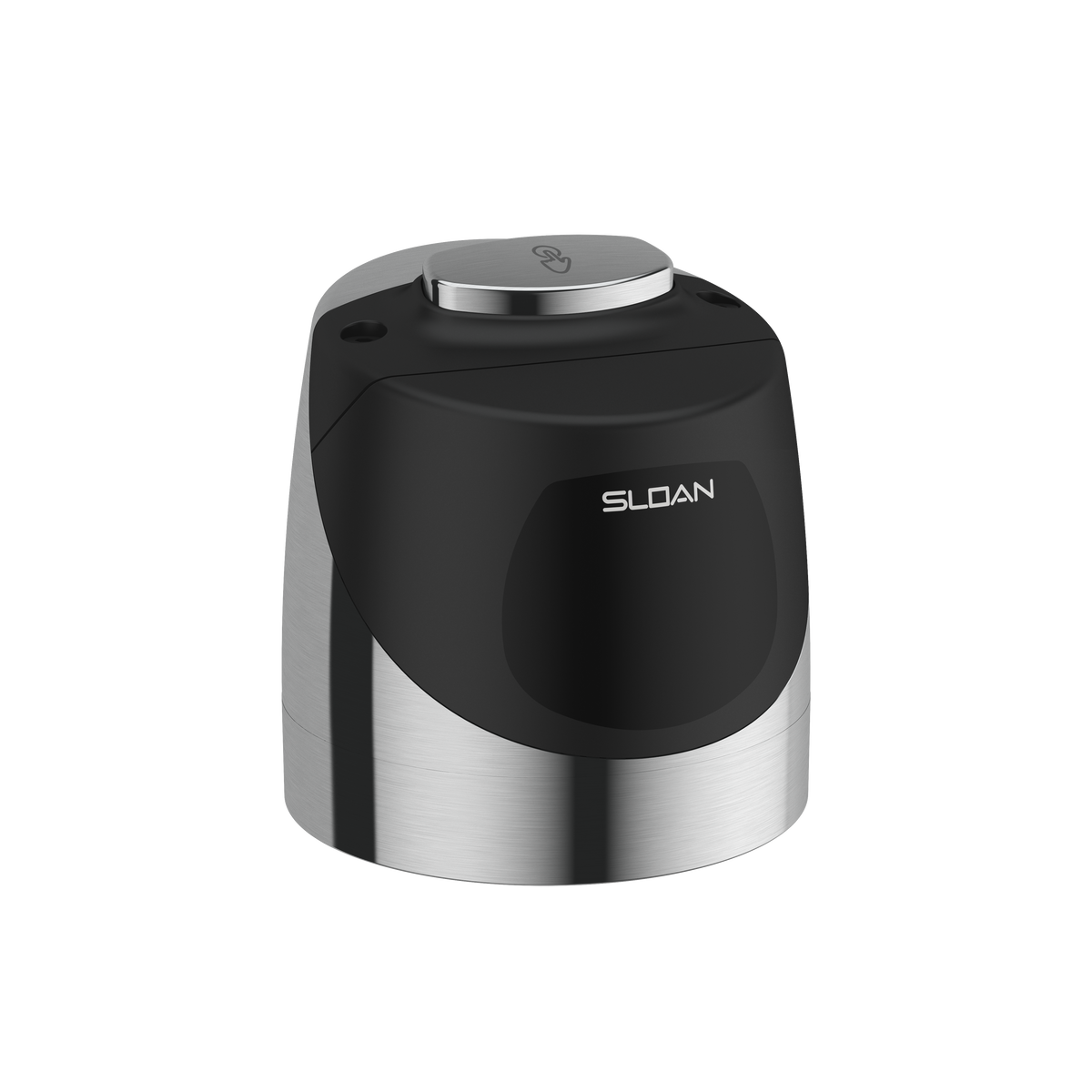

Sloan ECOS RESS-U BT Battery-Powered Sensor Retrofit Kit for Urinal Flushometers, Brushed Stainless, SKU 33754017

The Sloan ECOS RESS-U BT-0.25-SF is a battery-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the ECOS® Exposed Sensor Urinal Retrofit Flushometer, the ECOS RESS-U BT, a cutting-edge solution for modern restroom facilities. This innovative device combines advanced technology with water-saving efficiency, making it an ideal choice for upgrading existing urinal systems. The ECOS RESS-U BT features wireless connectivity, allowing for real-time diagnostics and adjustable product settings through the Sloan Connect App®, easily accessible on smartphones and tablets. Key features of this state-of-the-art flushometer include a "Low Battery" flashing LED indicator, ensuring timely maintenance, and a sweat solder adapter with cover tube and cast wall flange with set screw for secure installation. Powered by four AA batteries, the ECOS RESS-U BT utilizes an infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. The fixed metering bypass and absence of external volume adjustment guarantee consistent water conservation, while the flex tube diaphragm design enhances longevity and reduces maintenance requirements. The ECOS RESS-U BT boasts an engineered metal cover with a replaceable lens window, a PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass, and a convenient Courtesy Flush® override button. This professional-grade flushometer complies with applicable sections of ASSE 1037, ensuring reliability and performance. Upgrade your restroom facilities with the ECOS® Exposed Sensor Urinal Retrofit Flushometer for improved hygiene, water efficiency, and user experience.

Base configuration: no option suffixes on this model number (ECOS RESS-U BT-0.25-SF).

Features

• 0.25 gpf, Dual-Filtered Fixed Bypass Diaphragm, Brushed Stainless Finish, Single Flush, Electrical Override, Battery
• Wireless connected device for real time diagnostic and adjustable product settings
• Sloan Connect App® readily available for smart phone and tablet devices
• “Low Battery” Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Four (4) Size AA Battery Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Battery-powered -- no wiring required.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: ECOS RESS-U BT-0.25-SF
• Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.25
• Dual Flush: No
• Finish: Brushed Stainless
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: Bluetooth
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
