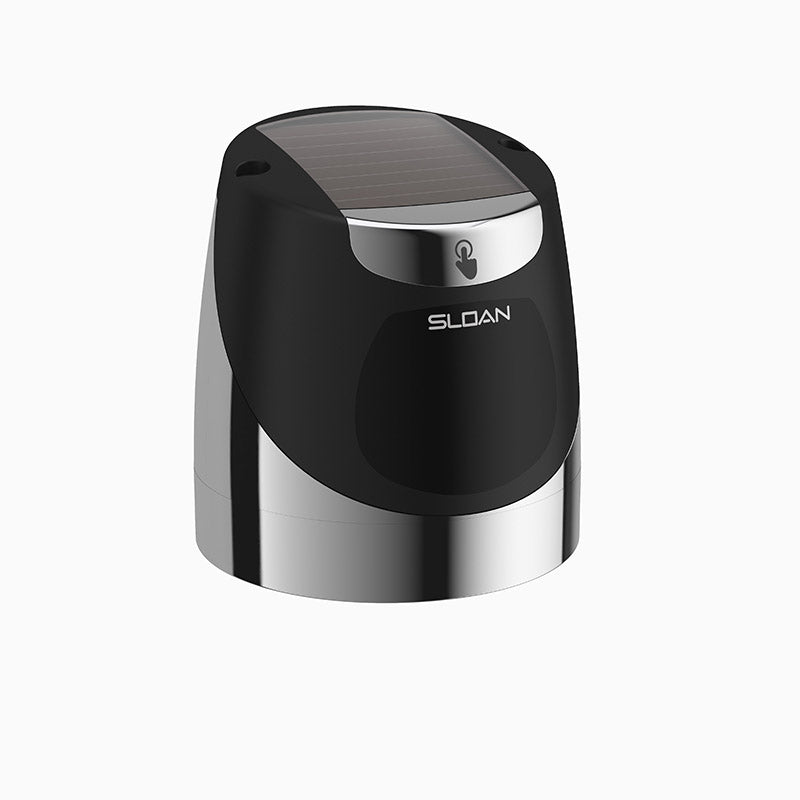

Sloan SOLIS RESS-C Solar-Powered Sensor Retrofit Kit for Water Closet Flushometers, Fits Zurn V, 3.5/1.6 gpf

The Sloan SOLIS RESS-C-3.5/1.6-CP-Z is a solar-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It fits Zurn valve bodies as well as Sloan. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Introducing the SOLIS® Exposed Sensor Water Closet Retrofit Replacement Flushometer, a cutting-edge solution for modern restroom facilities. This innovative flushometer combines advanced technology with water conservation features to deliver optimal performance and efficiency. The SOLIS RESS-C is a solar-powered, sensor-activated retrofit conversion kit designed for Royal®, Sloan®, and Regal® closet flushometers. Its quiet operation and exposed design make it an ideal choice for various commercial and institutional settings. The flushometer utilizes a solar cell that harvests power from artificial indoor light sources, ensuring reliable operation with minimal maintenance. One of the key highlights of this product is its user-friendly three-second flush delay, which enhances hygiene and prevents unnecessary water usage. The flushometer also features a "Low Battery" flashing LED indicator and a backup power source of four AA batteries, ensuring continuous operation even in low-light conditions. The SOLIS RESS-C employs an infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. This intelligent system offers dual flushing options: a reduced 1.1 gpf flush for liquid waste and a full 1.6 gpf flush for solid waste, promoting water conservation without compromising sanitation. With its fixed metering bypass and absence of external volume adjustment, this flushometer consistently delivers optimal water savings.

Options on this configuration: Fits Zurn Valve Bodies (Z); 3.5/1.6 gpf; C; ZURN. Sloan model number: SOLIS RESS-C-3.5/1.6-CP-Z. Sloan's own price-list description: SOLIS RESS-Z-C SINGLE FLUSH (ZURN).

Features

• 3.5/1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar, Fits *Zurn® valve bodies
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source.
• “Low Battery” Flashing LED, Four (4) Size AA Battery Back-up Power Source with user friendly three (3) second Flush Delay
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• PERMEX® Synthetic Rubber Flex Tube Diaphragm with Dual filtered bypass designed for improved life and reduced maintenance
• ADA Compliant Sloan SOLIS® Electronic Single Flush Solar Powered Infrared Sensor for automatic “No Hands” operation
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What does this kit fit?

Sloan's own copy states it fits Zurn valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: SOLIS RESS-C-3.5/1.6-CP-Z
• Certifications: ADA, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Fits Brand: Zurn
• Kit Type: RESS Sensor Retrofit Kit
