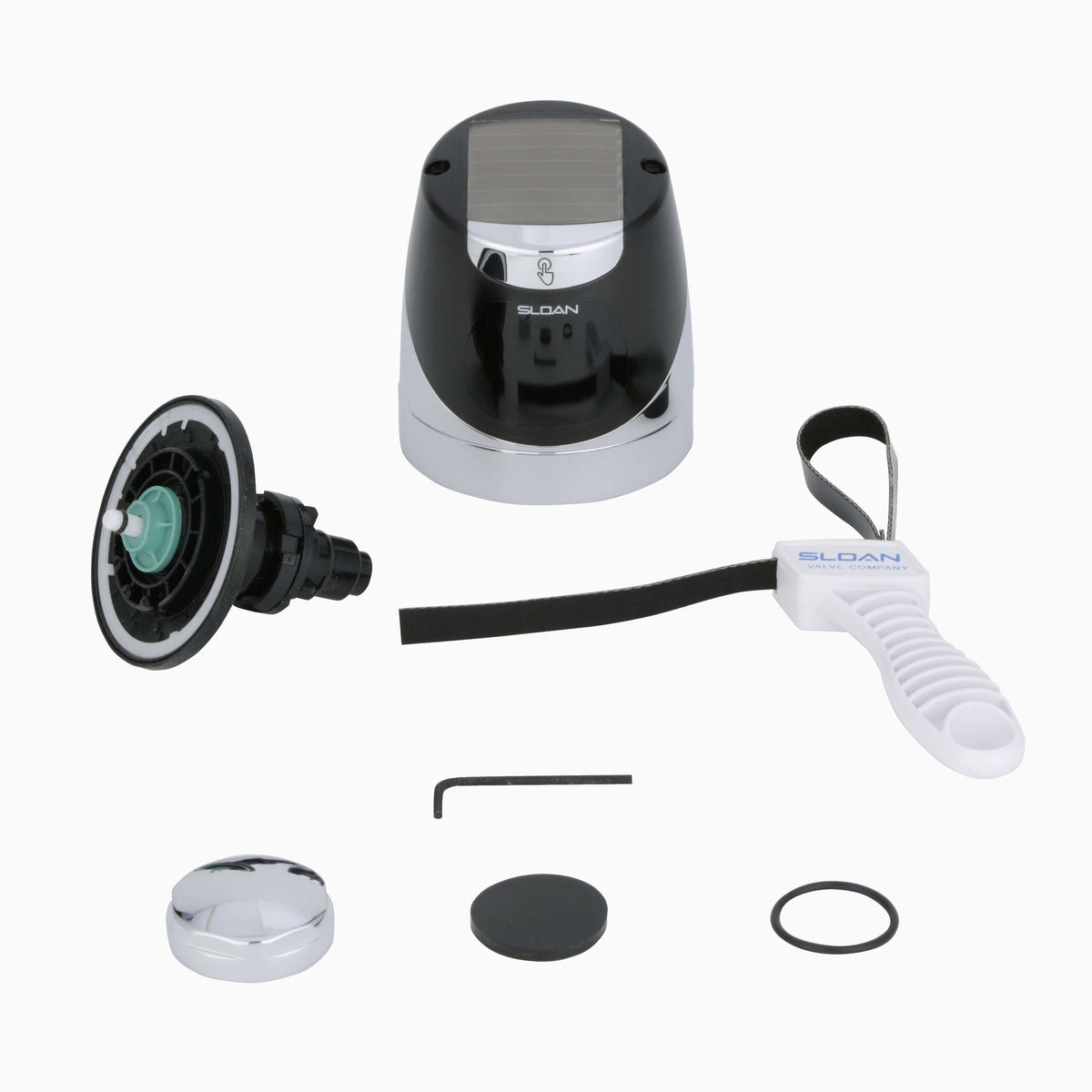

Sloan SOLIS RESS-U SMT Solar-Powered Sensor Retrofit Kit for Urinal Flushometers, SKU 33753016

The Sloan SOLIS RESS-U SMT-SMT-0.25-CP is a solar-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a permex synthetic rubber diaphragm seat.

Introducing the SOLIS® Exposed Sensor Urinal Retrofit Flushometer, a cutting-edge solution for modern restroom facilities. This innovative product, part of the SOLIS RESS-U SMT series, combines advanced technology with eco-friendly design to deliver exceptional performance and water conservation. The SOLIS® Flushometer features a solar-powered sensor assembly that harvests energy from indoor lighting, ensuring reliable operation with minimal environmental impact. With the ability to generate 100% power from just 650 lux of illumination, this system demonstrates remarkable efficiency. For added reliability, the unit includes a backup power source of four AA batteries, complete with a low battery indicator. Equipped with an infrared sensor featuring multiple-focused, lobular sensing fields, the SOLIS® Flushometer offers precise high and low target detection. This advanced sensing technology, coupled with a fixed metering bypass and no external volume adjustment, guarantees consistent water conservation without compromising performance. The SOLIS® Flushometer is not just about functionality; it's also designed for easy maintenance and longevity. Its engineered metal cover with a replaceable lens window, PERMEX® synthetic rubber diaphragm, and dual filtered fixed bypass ensure durability and smooth operation. Compatible with Sloan's SC Argus® Pro smart restroom system, this flushometer offers IoT capabilities for wireless remote management and monitoring, allowing facility managers to access detailed product information, usage data, and perform remote setting adjustments, elevating restroom management to new heights of efficiency and control.

Base configuration: no option suffixes on this model number (SOLIS RESS-U SMT-SMT-0.25-CP).

Features

• 0.25 gpf, SC Argus® Pro Compatible, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar, Infrared, 10.5" Vacuum Breaker
• Quiet, Exposed, Sloan Solis® Single Flush, Solar Powered, Sensor Activated Urinal RESS

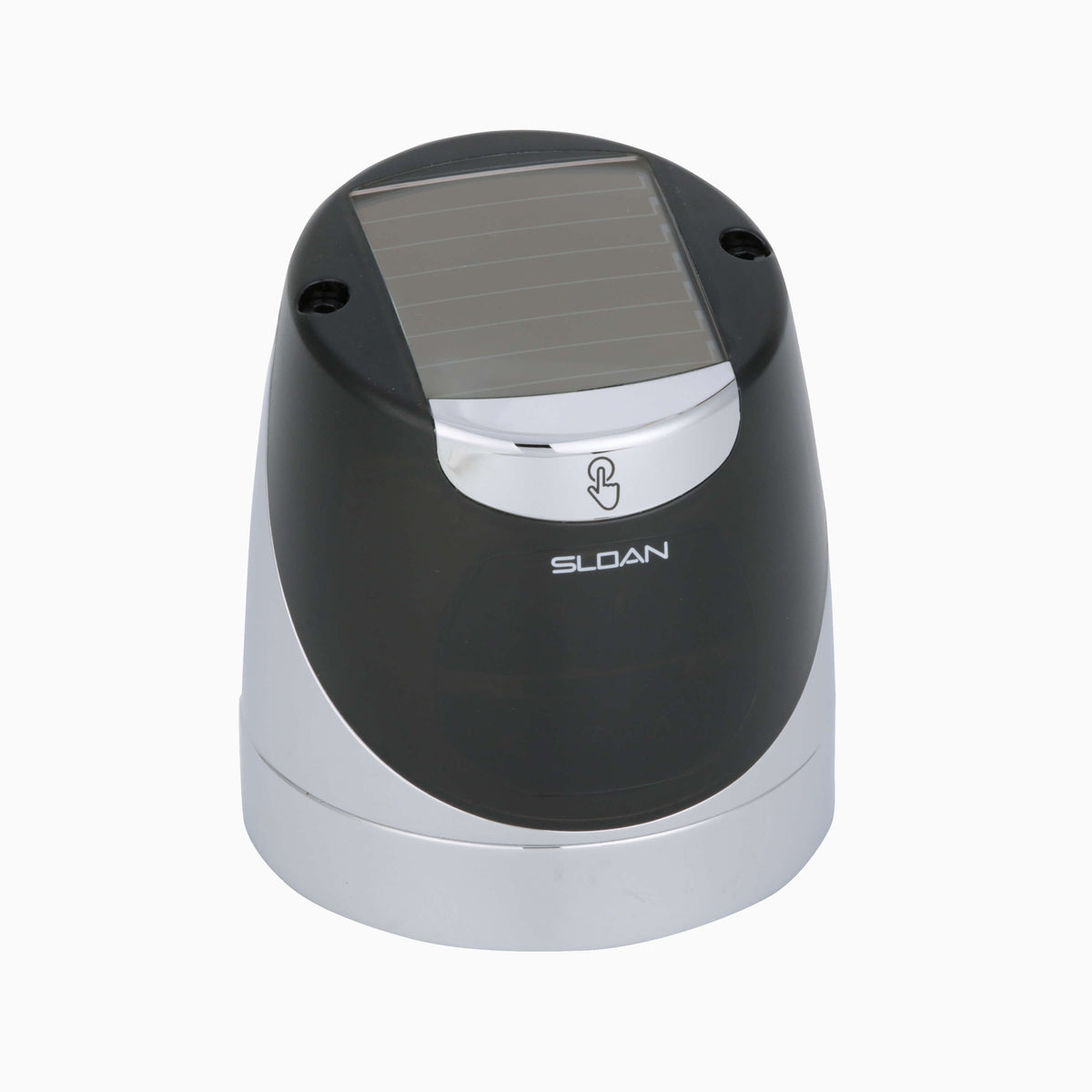

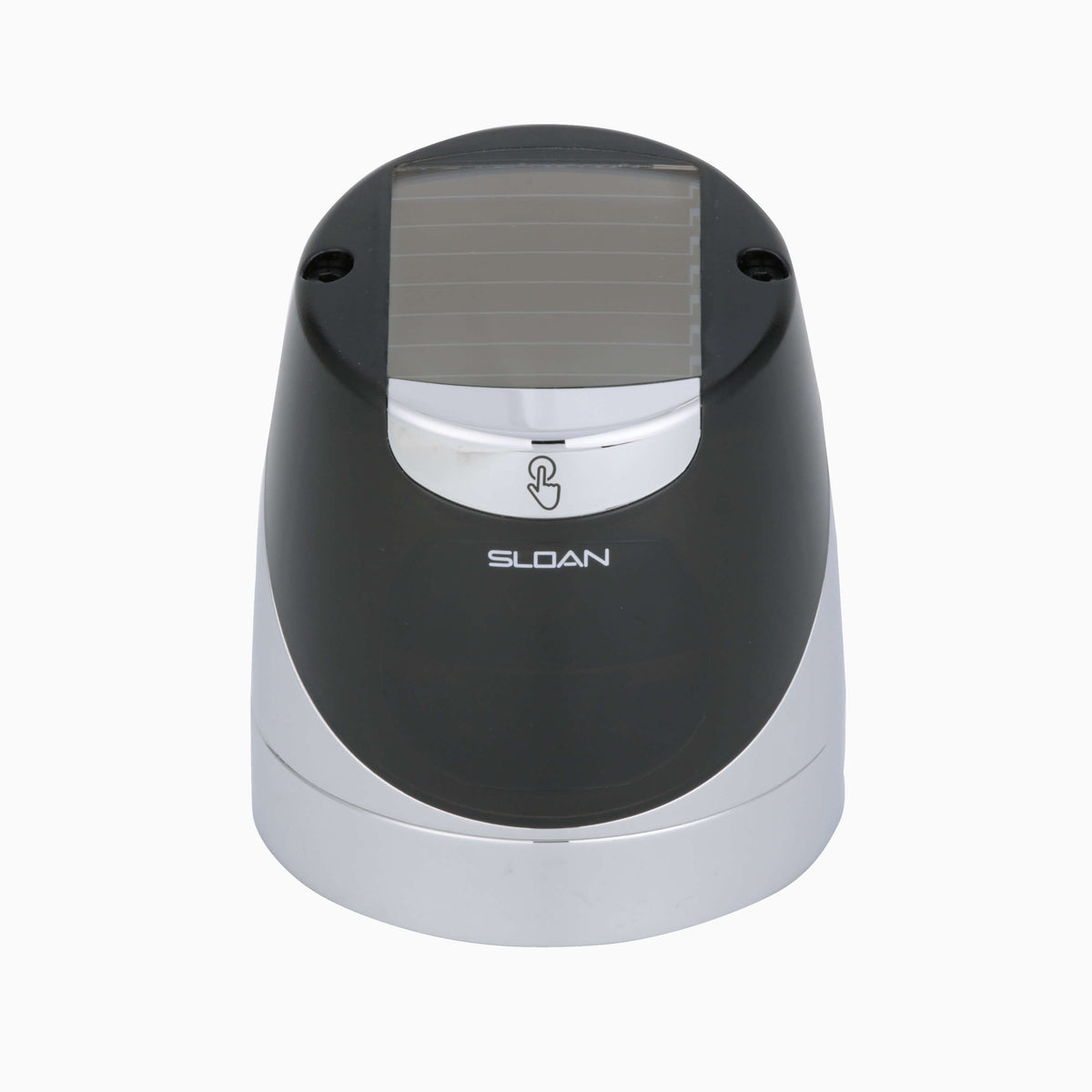

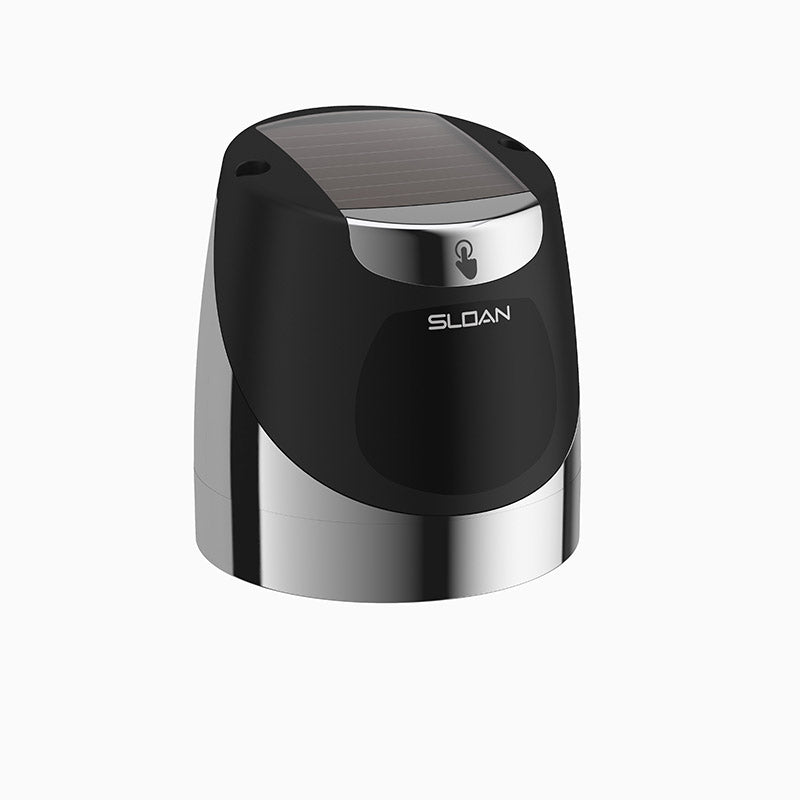

• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source with “Low Battery” Flashing LED
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flushometer operates normally when not connected to the SC Argus® Pro system
• IOT Smart Capabilities- Compatible with Sloan’s SC Argus® Pro smart restroom system for wireless remote management and monitoring
• Provides detailed product information, image, model, total activations, total operating hours, location room
• Automatically sends usage data, battery life, product health information
• Allows for remote setting changes and line flushes via SC Argus® Pro
• Requires subscription to SC Argus® Pro SaaS

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: SOLIS RESS-U SMT-SMT-0.25-CP
• Certifications: ADA, FCC, IAPMO
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 0.25
• Dual Flush: No
• Finish: Polished Chrome
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: IoT (SC Argus Pro)
• Fits Brand: Sloan
• Kit Type: SMT (IoT) Retrofit Kit
