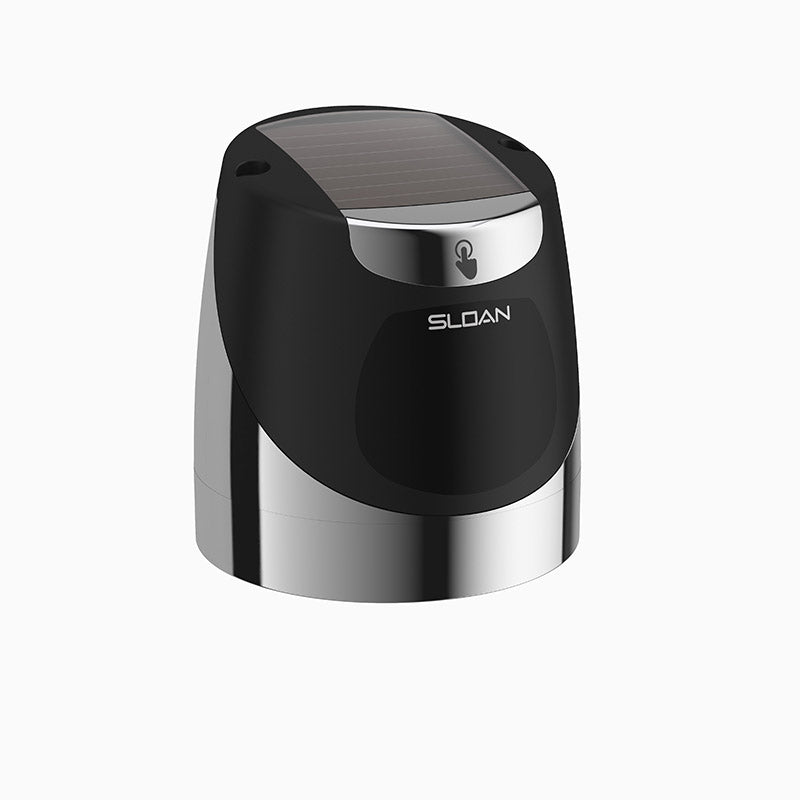

Sloan SOLIS RESS-C SMT Solar-Powered Sensor Retrofit Kit for Water Closet Flushometers, 1.6/1.1 gpf

The Sloan SOLIS RESS-C SMT-SMT-1.6/1.1-CP is a solar-powered sensor retrofit kit that converts a manual water closet flushometer to sensor operation. It features a permex synthetic rubber diaphragm seat.

Introducing the SOLIS® Exposed Sensor Water Closet Retrofit Flushometer, a cutting-edge solution for modern restroom facilities. The SOLIS RESS-C SMT combines innovative technology with water conservation to deliver a superior flushing experience. This exposed, solar-powered flushometer operates silently and efficiently, utilizing an infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. The SOLIS RESS-C SMT features a user-friendly three-second flush delay and is powered by a solar cell that harvests energy from artificial indoor lighting, ensuring reliable operation in various environments. With the ability to provide 100% power at 650 lux illuminance, this flushometer offers exceptional energy efficiency. For added reliability, the unit includes a four-size AA battery backup power source with a low battery indicator LED. Designed with both performance and aesthetics in mind, the SOLIS RESS-C SMT boasts an engineered metal cover with a replaceable lens window and a PERMEX® synthetic rubber diaphragm featuring a dual filtered fixed bypass. The fixed metering bypass and absence of external volume adjustment guarantee consistent water conservation without compromising performance. Compatible with Sloan's SC Argus® Pro smart restroom system, this flushometer offers IoT capabilities for wireless remote management and monitoring. Facility managers can access detailed product information, track usage data, and perform remote setting changes, making the SOLIS RESS-C SMT an ideal choice for modern, efficient, and sustainable restroom solutions.

Options on this configuration: 1.6/1.1 gpf. Sloan model number: SOLIS RESS-C SMT-SMT-1.6/1.1-CP. Sloan's own price-list description: Solis RESS-C-1.6/1.1 DUAL FLUSH SMT CP.

Features

• 1.6/1.1 gpf, SC Argus® Pro Compatible, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, Electrical Override, Solar, Infrared, 10.5" Vacuum Breaker
• Quiet, Exposed, Sloan Solis® Single Flush, Solar Powered, Sensor Activated Water Closet RESS
• User friendly three (3) second Flush Delay
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source with “Low Battery” Flashing LED
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flushometer operates normally when not connected to the SC Argus® Pro system
• IOT Smart Capabilities- Compatible with Sloan’s SC Argus® Pro smart restroom system for wireless remote management and monitoring
• Provides detailed product information, image, model, total activations, total operating hours, location room
• Automatically sends usage data, battery life, product health information
• Allows for remote setting changes and line flushes via SC Argus® Pro
• Requires subscription to SC Argus® Pro SaaS

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A water closet flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: SOLIS RESS-C SMT-SMT-1.6/1.1-CP
• Certifications: ADA, FCC, IAPMO
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Dual Flush: Yes
• Finish: Polished Chrome
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: IoT (SC Argus Pro)
• Fits Brand: Sloan
• Kit Type: SMT (IoT) Retrofit Kit
