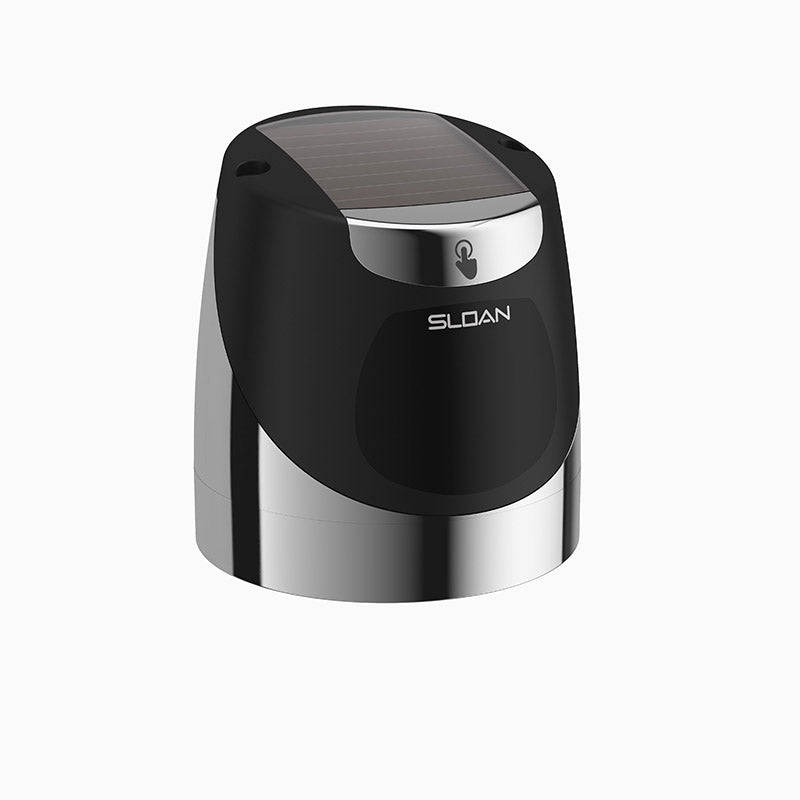

Sloan SOLIS RESS-U BT Solar-Powered Sensor Retrofit Kit for Urinal Flushometers, SKU 33753008

The Sloan SOLIS RESS-U BT-0.5-CP is a solar-powered sensor retrofit kit that converts a manual urinal flushometer to sensor operation. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

The SOLIS RESS-U-BT Top-Mount Solar Powered Bluetooth Enabled Sensor retrofit kit is designed to convert existing urinal Sloan manual flushometers to hands-free sensor activation, reducing surface contact in commercial restrooms and enhancing hygiene. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux). This retrofit kit has bluetooth connectivity and can be used with the Sloan Connect App® for real time diagnostic and adjustable product settings. The SOLIS RESS-U-BT retrofit kit includes the top-mount sensor conversion kit, a PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass, the chrome plated handle cap, and four (4) size AA batteries for a backup power source. The SOLIS RESS-U-BT is designed with a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection. The top-mount sensor retrofit kit is engineered with a metal cover with replaceable lens window and a Courtesy Flush® Override Button for commercial durability. Additional premium feature includes a user friendly three (3) second flush delay. The SOLIS RESS-U-BT is compatible with urinal diaphragm flushometer families including Regal, Royal, and Sloan

Base configuration: no option suffixes on this model number (SOLIS RESS-U BT-0.5-CP).

Features

• 0.5 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Electrical Override, Solar
• Quiet, Exposed, SOLIS®, Solar Powered, Sensor Activated Urinal Flushometer Retrofit Conversion Kit for Royal®, Sloan® and Regal®
• Wireless connected device for real time diagnostic and adjustable product settings
• Sloan Connect App® readily available for smart phone and tablet devices
• “Low Battery” Flashing LED
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
• Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance

Common Questions

What does this kit fit?

Sloan's own copy states it fits Sloan valve bodies as well as Sloan's own.

How is it powered?

Solar-powered, harvesting ambient light, with a battery back-up for low light.

What fixture is this retrofit for?

A urinal flushometer, per Sloan's own product name for this kit.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: SOLIS RESS-U BT-0.5-CP
• Certifications: ADA, Buy American Act, IAPMO
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Solar
• Power Supply Detail: 4x AA Batteries
• Sensor Type: Infrared
• Override Type: Electrical Override
• Connectivity: Bluetooth
• Fits Brand: Sloan
• Kit Type: RESS Sensor Retrofit Kit
