Sloan MCR-8012-A-003 PWT System 8-I/O Twisted Pair Controller, MCR-8012-A-003 HC Lav, WC

The Sloan MCR-8012-A-003 is a controller, a Sloan Valve genuine replacement part.

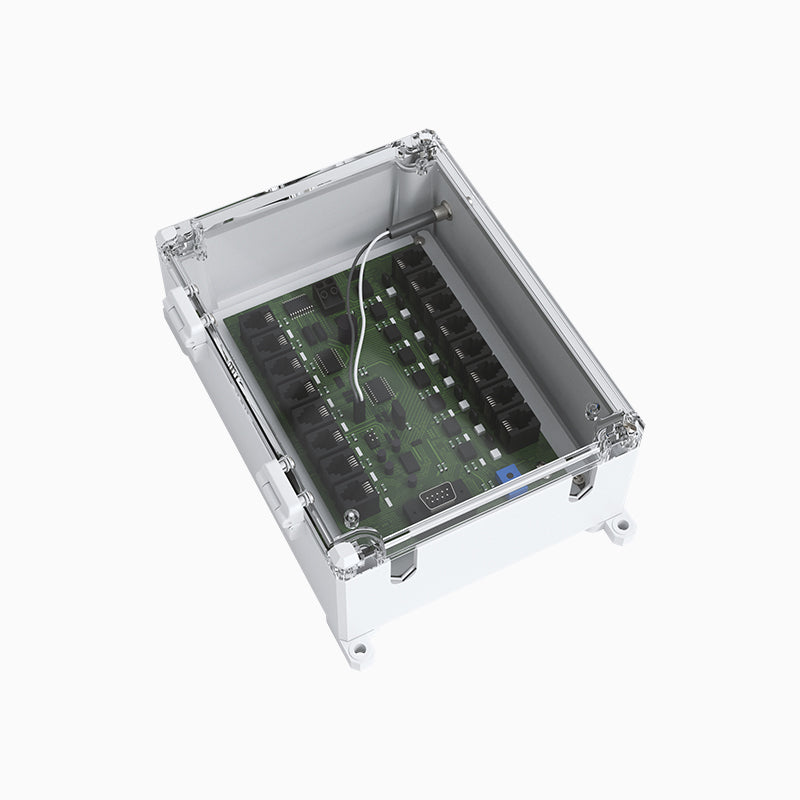

The Sloan MCR-8012-A (formerly MCR-8002) is an eight input/output (8 I/O) controller that is used with Sloan PWT push buttons and solenoids used to control water closets, lavatories, and shower systems. The MCR-8012-A controller can be pre-programmed for specific activations and run-times along with lockouts for a predetermined length of time for improper usage as well as for water conservation purposes. Sloan PWT communicating controllers can be connected to PWT Management Consoles utilizing a FT-10 (twisted pair) network so that the entire network of connected controllers and fixtures can be monitored and programs or settings can be changed. The MCR-8012-A controller has a hinged door and enclosure that is IP-53 rated, the eight input/output ports are 4-pin RJ-11 connections. The Sloan PWT Systems allow a facility to take control of their plumbing systems to minimize mis-use as well as manage water usage. Pre-programed to allow for 2 activations within 5 minutes with no delays. If a third activation attempt is made within the five minute timeframe, the flushometer will lock-out or prevent any further activations for a period of 60 minutes (1 hour).

Features

• PWT System 8-I/O Twisted Pair Controller, MCR-8012-A-003 HC Lav, WC
• IP53 enclosure w/ hinged door
• Eight Input/output field programmable controller to control lavatories, water closets, showers or combination fixtures
• Fixture usage can be pre-programmed for delays, scheduled runtimes or complete lockouts to prohibit improper usage of water closets, lavatories and showers
• Input and output diagnostic LEDs give immediate information about service issues
• Easy access reset button
• Controllers offer oversight of various combinations of fixtures
• Administrators can change settings in the field

Common Questions

What flush valves does this part fit?

Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.

Is this a genuine Sloan part?

Yes. The MCR-8012-A-003 is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: MCR-8012-A-003
• Certifications: Buy American Act
• Product Role: Controller
• Accessory Type: Controller
