Sloan MCR-4014-A PWT System 4-I/O Twisted Pair Controller, MCR-4014-A All

The Sloan MCR-4014-A is a controller, a Sloan Valve genuine replacement part.

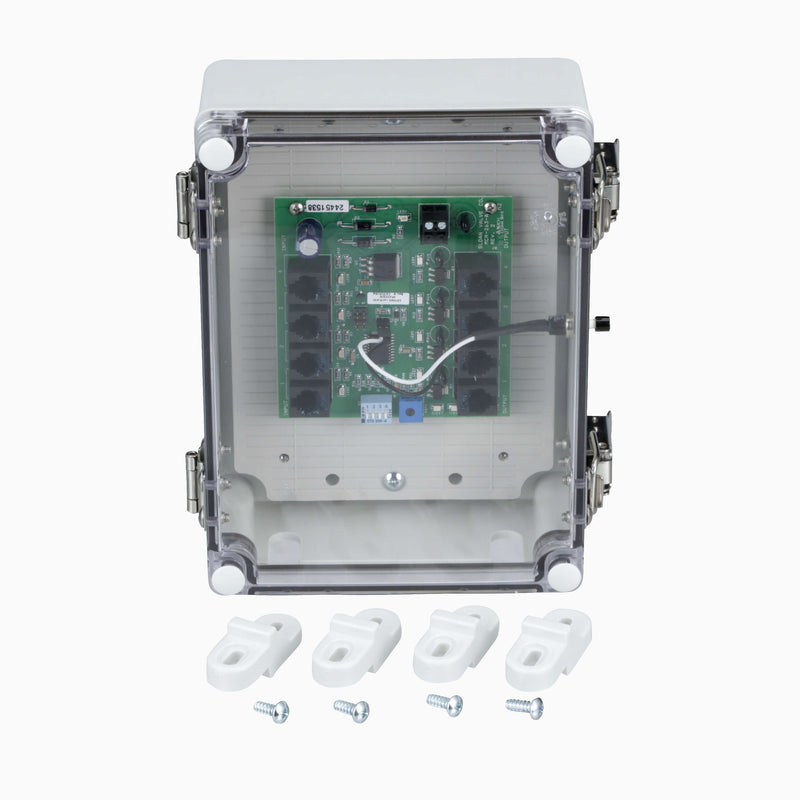

The Sloan MCR-4014-A (formerly MCR-4004) is a four input/output (4 I/O) controller that is used with Sloan PWT push buttons and solenoids to control water closets, lavatories, and shower systems. The MCR-4014-A controller can be pre-programmed for specific activations and run-times along with lockouts for a predetermined length of time for improper usage as well as for water conservation purposes. The MCR-4014-A is a stand-alone controller where application settings can be changed through 4-position dip switches and run-times or lock-out times can be adjusted using the potentiometer in the field. The MCR-4011-A controller has a hinged door and enclosure that is IP-53 rated, the four input/output ports are 4-pin RJ-11 connections. The Sloan PWT Systems allow a facility to take control of their plumbing systems to minimize mis-use as well as manage water usage.

Features

• PWT System 4-I/O Twisted Pair Controller, MCR-4014-A All
• IP53 rated enclosure w/ hinged door
• Four Input/output field-programmable controller to control lavatories, water closets, showers or combination fixtures
• Fixture usage can be pre-programmed for delays, scheduled runtimes or complete lockouts to prohibit improper usage of water closets, lavatories and showers
• Input and output diagnostic LEDs give immediate information about service issues
• Easy access reset button
• different controllers offer oversight of various combinations of fixtures
• Administrators can change settings in the field

Common Questions

What flush valves does this part fit?

Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.

Is this a genuine Sloan part?

Yes. The MCR-4014-A is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: MCR-4014-A
• Certifications: Buy American Act
• Product Role: Controller
• Accessory Type: Controller
