Sloan MCR-4011-AL-001 PWT System 4-I/O Twisted Pair Communicating Controller, MCR-4011AL-001 S…

The Sloan MCR-4011-AL-001 is a controller, a Sloan Valve genuine replacement part.

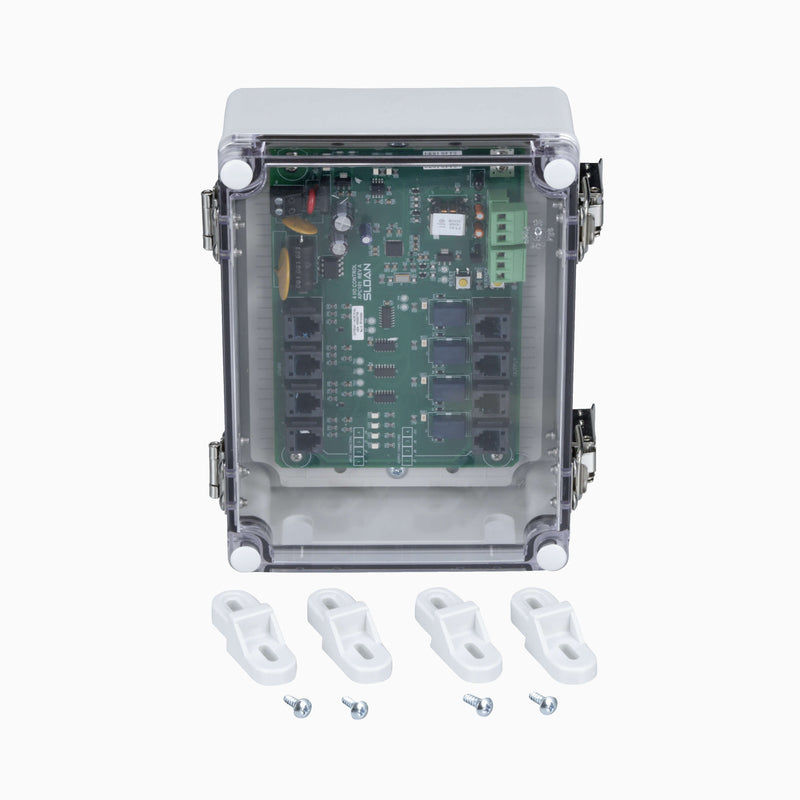

The Sloan MCR-4011-A (formerly MCR-4001) is a four input/output (4 I/O) communicating controller that is used with Sloan PWT push buttons and solenoids to control water closets, lavatories, and shower systems. The MCR-4011-A communicating controller can be pre-programmed for specific activations and run-times along with lockouts for a predetermined length of time for improper usage as well as for water conservation purposes. Sloan PWT communicating controllers can be connected to PWT Management Consoles utilizing a FT-10 (twisted pair) network so that the entire network of connected controllers and fixtures can be monitored and programs or settings can be changed. The MCR-4011-A controller has a hinged door and enclosure that is IP-53 rated, the four input/output ports are 4-pin RJ-11 connections. The Sloan PWT Systems allow a facility to take control of their plumbing systems to minimize mis-use as well as manage water usage. Pre-programed for water closet, lavatory and shower combination set-up. Program set for 20 seonds of lavatory hot water run time, 10 seconds of lavatory cold water run time, 1 hour water closet lockout, and 1 & 2 minute shower cycle.

Features

• PWT System 4-I/O Twisted Pair Communicating Controller, MCR-4011AL-001 Showers Dual
• IP-53 rated enclosure w/ hinged door
• Four input/output controller used with PWT push buttons, electronic flushometers and solenoids to control water closets, lavatories and showers
• Can connect to a computer managed, FT-10 (twisted pair) network.
• Four Input/Output twisted pair communicating control
• Fixture usage can be pre-programmed for delays, scheduled runtimes or complete lockouts to prohibit improper usage of water closets, lavatories and showers
• May be connected to PWT management console for communicating solution
• Input and output diagnostic LEDs give immediate information about service issues
• Easy access reset button
• Different controllers offer oversight of various combinations of fixtures

Common Questions

What flush valves does this part fit?

Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.

Is this a genuine Sloan part?

Yes. The MCR-4011-AL-001 is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: MCR-4011-AL-001
• Certifications: Buy American Act
• Product Role: Controller
• Accessory Type: Controller
