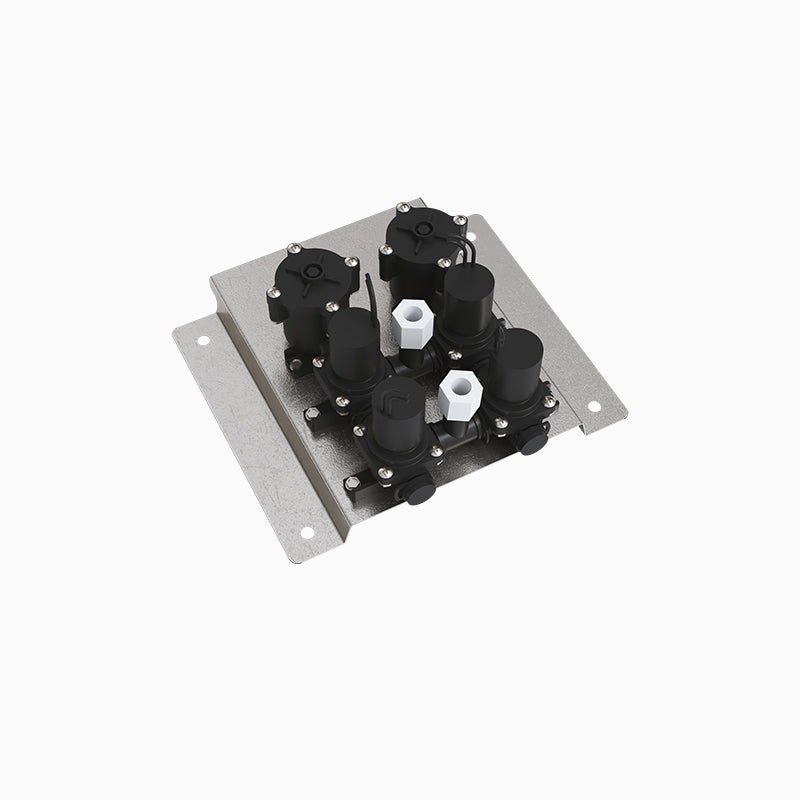

Sloan MCR-321A-2 PWT Manifold ASM 2-Line, 0.5 gpm

The Sloan MCR-321A-2 is a manifold, a Sloan Valve genuine replacement part.

The Sloan MCR-321A-2 Two-Line mixing manifold is used with the Sloan PWT System to manage water usage and activations. The MCR-321A-2 Manifold contains four electronically activated solenoids used to supply 0.5 GPM hot, cold, and mixed water to multiple plumbing fixtures. The manifold controls water run-times to lavatory fixtures used in conjunction with Sloan MCR-Series controllers. The MCR-321A-2 comes with the complete mounting system for easy installation with a small footprint. The MCR-321A-2 is a high-quality and durable mixing manifold designed for use with large commercial facilities looking to manage water usage and activations with the Sloan PWT Systems.

Features

• PWT Manifold ASM 2-Line, 0.5 gpm
• Manifold containing four solenoids used to supply hot, cold and mixed water to two lavatory fixtures
• Controls water run-times to lavatory and shower fixtures
• Used in conjunction with PWT control modules
• Small footprint
• Complete mounting system
• Back-check valves and hoses included
• Easy installation
• Connects to Sloan PWT MCR-Series Controller
• Specifications: 0.5 gpm
• 160 degrees Fahrenheit maximum water temperature
• Fixtures require water pressure of at least 0.35 PSI flowing
• Recommended maximum pressure of 0.75 PSI
• Dimensions: 9.38" x 10.35" x 4.05"

Common Questions

What flush valves does this part fit?

Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.

Is this a genuine Sloan part?

Yes. The MCR-321A-2 is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: MCR-321A-2
• Product Role: Manifold
• Accessory Type: Manifold
