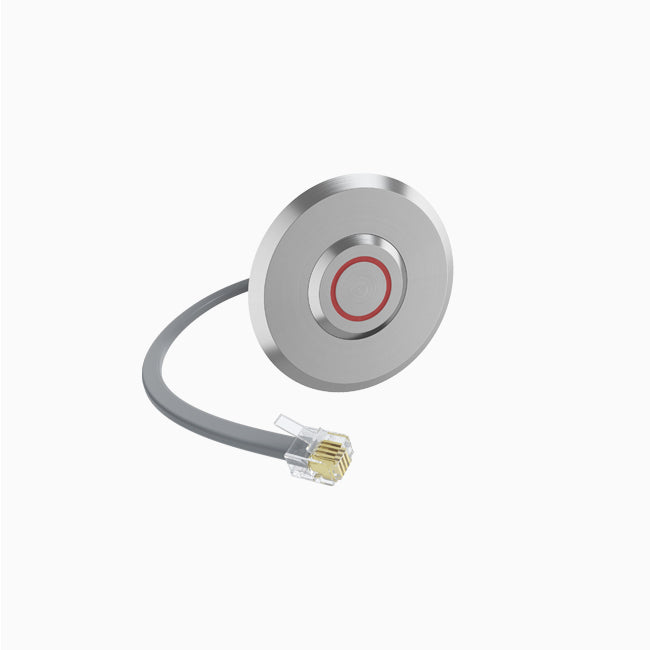

Sloan MCR-326A-L PWT LED Universal Button with RJ11 connector

The Sloan MCR-326A-L is a push button, a Sloan Valve genuine replacement part.

The Sloan MCR-326A-L Piezo LED Push-button is used with the Sloan PWT Systems to initiate activations of plumbing fixtures. The MCR-326A-L Pushbutton includes an LED indicator when used with the MCR-4011/4001 communicating controllers on water closets to make users visually aware if the fixture trying to be activated has been locked-out. This push-button includes a universal mounting system and can be installed directly to the fixture panel or through-wall up to 12" thick. The MCR-326A-L universal mounting kit comes with an optional flange, threaded rod, locking nut, and wall sleeve. The MCR-324-L Piezo LED Push-button is a high-quality and durable push-button designed for use with large commercial facilities looking to manage water usage and activations with Sloan PWT Systems.

Features

• PWT LED Universal Button with RJ11 connector
• LED touch button for operation of PWT products
• LED indicator for lockout condition
• Activates flushometers, showers and lavs in PWT systems
• Connects to MCR-4011, MCR-4014 and MCR-8012 controllers
• Universal mounting system
• RJ-11 jack to controllers
• Stainless steel, vandal proof button
• Waterproof
• Chemical resistant
• Removeable flange
• Wall fixture button
• Includes universal mounting kit
• 12” threaded rod for through-wall installation, up to 10” wall thickness
• Button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• 15’ Connector cable
• Ideal for ADA installations

Common Questions

What flush valves does this part fit?

Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.

Is this a genuine Sloan part?

Yes. The MCR-326A-L is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: MCR-326A-L
• Product Role: Push Button
• Accessory Type: Push Button
